固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM6530T-100MINDUCTORS FOR POWER CIRCUITS, WO TDK Corporation |
1,111 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 10 µH | ±20% | 3.6 A | 3.8A | Shielded | 72.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
SPM6530T-R25M230FIXED IND 250NH 23A 2.31MOHM SMD TDK Corporation |
4,180 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 250 nH | ±20% | 23 A | 28.5A | Shielded | 2.31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|

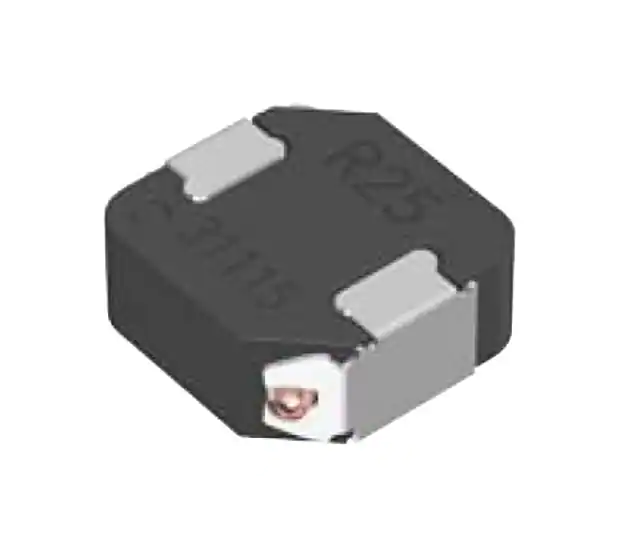

SPM6545VT-100M-DFIXED IND 10UH 4.3A 0.0523OHM SM TDK Corporation |
2,071 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 4.3 A | 7.1A | Shielded | 52.3mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 6545 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.177" (4.50mm) |
|
CLF7045T-330M-DFIXED IND 33UH 1.4A 132 MOHM SMD TDK Corporation |
191 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.4 A | 1.55A | Shielded | 132mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|

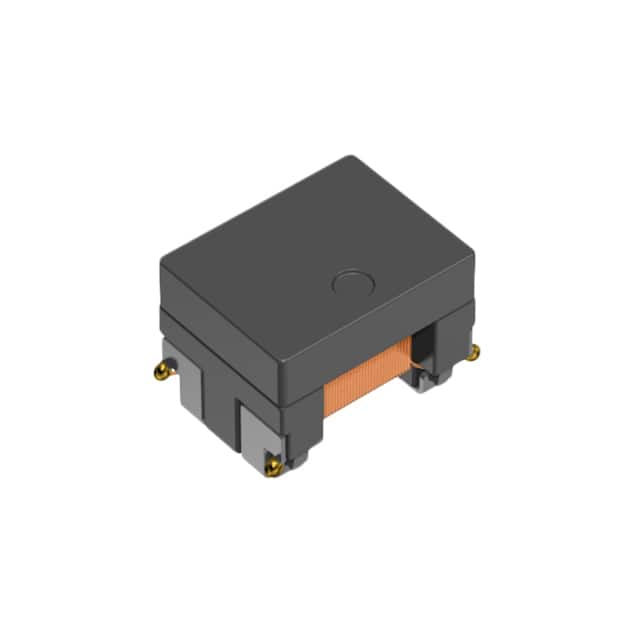

ADL3225VT-100M-TL000FIXED IND 10UH 450MA 150MOHM SMD TDK Corporation |
3,408 |
|
规格书 |
ADL-VT | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 450 mA | 450mA | Shielded | 150mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
CLF7045T-470M-DFIXED IND 47UH 1.2A 180 MOHM SMD TDK Corporation |
2,010 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.2 A | 1.3A | Shielded | 180mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
|
CLF7045T-6R8N-DFIXED IND 6.8UH 3A 35.1 MOHM SMD TDK Corporation |
990 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3 A | 3.3A | Shielded | 35.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
SPM5030VT-2R2M-DFIXED IND 2.2UH 6.6A 0.02OHM SMD TDK Corporation |
2,844 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 6.6 A | 9A | Shielded | 20mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 5030 | 0.209" L x 0.201" W (5.30mm x 5.10mm) | 0.118" (3.00mm) |
|
SPM4015T-100M-LRFIXED IND 10UH 1.5A 345 MOHM SMD TDK Corporation |
1,679 |
|
规格书 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.5 A | 1.9A | Shielded | 345mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.059" (1.50mm) |
|
SPM6550T-6R8M-HZFIXED IND 6.8UH 6.2A 37.95 MOHM TDK Corporation |
839 |
|
规格书 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 6.2 A | 3.5A | Shielded | 37.95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
