固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM5012T-2R2M-CAFIXED IND 2.2UH 2.9A 95 MOHM SMD TDK Corporation |
0 |
|
规格书 |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 2.9 A | 3.3A | Shielded | 95mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
|
VLF403215MT-100MFIXED IND 10UH 1.44A 180MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.44 A | 1A | Shielded | 180mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.059" (1.50mm) |
|
|
VLF403215MT-220MFIXED IND 22UH 950MA 380MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 950 mA | 650mA | Shielded | 380mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.059" (1.50mm) |
|
|
SPM3015T-1R0M-CAFIXED IND 1UH 3.5A 52.9 MOHM SMD TDK Corporation |
0 |
|
规格书 |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 3.5 A | 5.1A | Shielded | 52.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
LTF5022T-680MR54-DFIXED IND 68UH 590MA 1.03OHM SMD TDK Corporation |
0 |
|
规格书 |
LTF5022T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 590 mA | 540mA | Shielded | 1.03Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.087" (2.20mm) |
|
VLF5014AT-4R7M1R1FIXED IND 4.7UH 1.1A 130MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.1 A | 1.7A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|
|
VLF5014AT-6R8MR99FIXED IND 6.8UH 990MA 190MOHM SM TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 990 mA | 1.4A | Shielded | 190mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|
|
VLF5014AT-100MR92FIXED IND 10UH 920MA 220MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 920 mA | 1.1A | Shielded | 220mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|
|
VLF5014AT-150MR76FIXED IND 15UH 760MA 320MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 760 mA | 970mA | Shielded | 320mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|

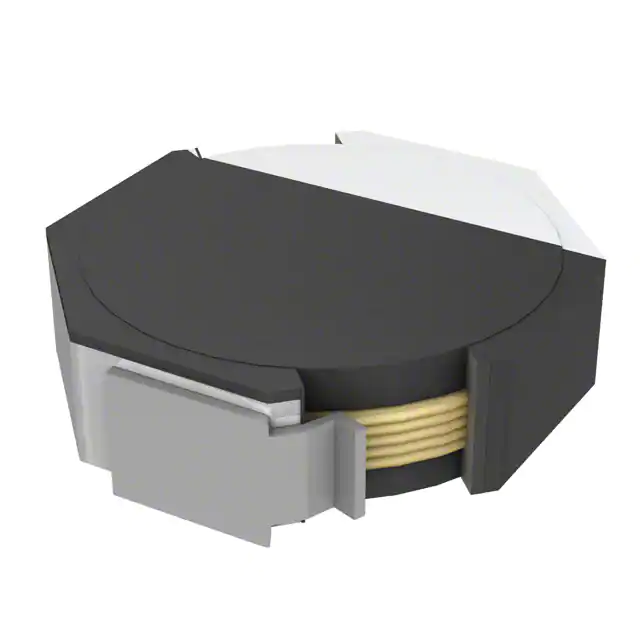

VLF5012ST-100M1R0FIXED IND 10UH 1A 290 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 1.2A | Shielded | 290mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.047" (1.20mm) |
