固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLF10040T-471M-DFIXED IND 470UH 440MA 1.452 OHM TDK Corporation |
1 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 440 mA | 560mA | Shielded | 1.452Ohm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-1R5N-DFIXED IND 1.5UH 5.8A 9.23MOHM SM TDK Corporation |
0 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 5.8 A | 10.6A | Shielded | 9.23mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
|
CLF10040T-2R2N-DFIXED IND 2.2UH 5A 12.61MOHM SMD TDK Corporation |
0 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5 A | 7.5A | Shielded | 12.61mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|

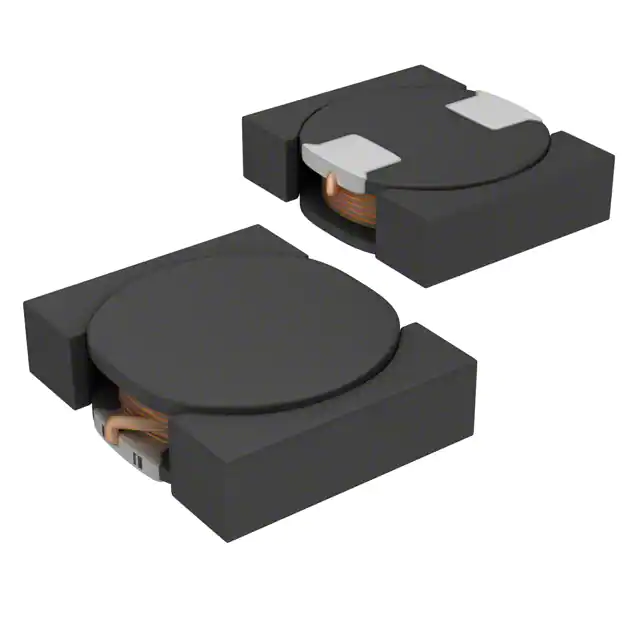

VLF403210MT-1R5N-CAFIXED IND 1.5UH 2.96A 43MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.96 A | 1.85A | Shielded | 43mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.039" (1.00mm) |
|
|
VLF403210MT-2R2M-CAFIXED IND 2.2UH 2.33A 66MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.33 A | 1.59A | Shielded | 66mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.039" (1.00mm) |
|
|
VLF403210MT-6R8M-CAFIXED IND 6.8UH 1.24A 220MOHM SM TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.24 A | 840mA | Shielded | 220mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.039" (1.00mm) |
|
|
VLF403210MT-100M-CAFIXED IND 10UH 1.04A 310MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.04 A | 700mA | Shielded | 310mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.039" (1.00mm) |
|
SPM3012T-2R2M-CAFIXED IND 2.2UH 2.2A 115MOHM SMD TDK Corporation |
0 |
|
规格书 |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 2.2 A | 2.5A | Shielded | 115mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
|
SPM3012T-3R3M-CAFIXED IND 3.3UH 1.5A 210MOHM SMD TDK Corporation |
0 |
|
规格书 |
SPM-CA | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 1.5 A | 1.8A | Shielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
VLF504010MT-220MFIXED IND 22UH 780MA 600MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 780 mA | 610mA | Shielded | 600mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.039" (1.00mm) |
