固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM5010T-6R8M-LRFIXED IND 6.8UH 1.3A 388.7 MOHM TDK Corporation |
0 |
|
规格书 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 1.3 A | 2.2A | Shielded | 388.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|
|
SPM5010T-R60M-LRFIXED IND 600NH 5A 33.5 MOHM SMD TDK Corporation |
0 |
|
规格书 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 600 nH | ±20% | 5 A | 6.8A | Shielded | 33.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|
|
SPM5010T-R47M-LRFIXED IND 470NH 5.3A 24.2MOHM SM TDK Corporation |
0 |
|
规格书 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 5.3 A | 8A | Shielded | 24.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|

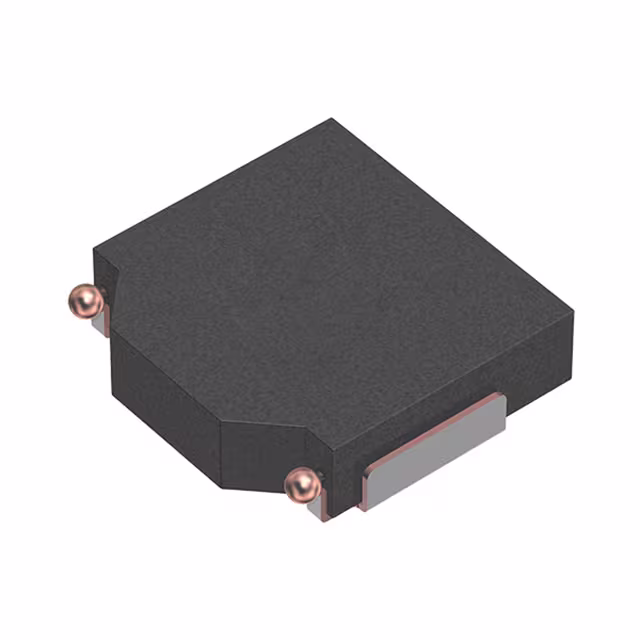

SPM5015T-R47M-LRFIXED IND 470NH 9A 12.1 MOHM SMD TDK Corporation |
0 |
|
规格书 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 9 A | 12A | Shielded | 12.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|
VLF4012AT-6R8MR96FIXED IND 6.8UH 960MA 230MOHM SM TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 960 mA | 960mA | Shielded | 230mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.138" W (3.70mm x 3.50mm) | 0.047" (1.20mm) |
|
|
VLF4012AT-4R7M1R1FIXED IND 4.7UH 1.1A 160MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.1 A | 1.1A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.138" W (3.70mm x 3.50mm) | 0.047" (1.20mm) |
|
|
VLF4012AT-470MR30FIXED IND 47UH 300MA 2.3 OHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 300 mA | 360mA | Shielded | 2.3Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.138" W (3.70mm x 3.50mm) | 0.047" (1.20mm) |
|
|
VLF4012AT-3R3M1R3FIXED IND 3.3UH 1.3A 120MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.3 A | 1.3A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.138" W (3.70mm x 3.50mm) | 0.047" (1.20mm) |
|
|
VLF4012AT-330MR39FIXED IND 33UH 390MA 1.4 OHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 390 mA | 440mA | Shielded | 1.4Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.138" W (3.70mm x 3.50mm) | 0.047" (1.20mm) |
|
|
VLF4012AT-2R2M1R5FIXED IND 2.2UH 1.5A 87 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.5A | Shielded | 87mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.138" W (3.70mm x 3.50mm) | 0.047" (1.20mm) |
