固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLF10165T-220M2R4-3PFFIXED IND 22UH 2.4A 53.8MOHM SMD TDK Corporation |
0 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.4 A | 2.7A | Shielded | 53.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.268" (6.80mm) |
|
|
SLF10165T-3R3N5R8-3PFFIXED IND 3.3UH 5.8A 12.5MOHM SM TDK Corporation |
0 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 5.8 A | 7.8A | Shielded | 12.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.268" (6.80mm) |
|
|
SLF10165T-6R8N4R3-3PFFIXED IND 6.8UH 4.3A 18.2MOHM SM TDK Corporation |
0 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.3 A | 4.6A | Shielded | 18.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.268" (6.80mm) |
|
|
SLF10165T-2R2N6R3-3PFFIXED IND 2.2UH 6.3A 10.9MOHM SM TDK Corporation |
0 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 6.3 A | 8.9A | Shielded | 10.9mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.268" (6.80mm) |
|

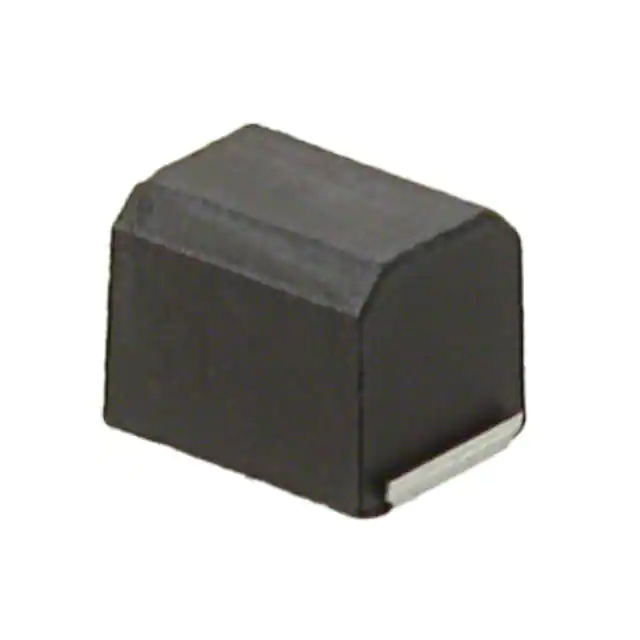

NLFC453232T-1R0M-PFFIXED IND 1UH 800MA 50 MOHM SMD TDK Corporation |
10 |
|
规格书 |
NLFC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 800 mA | - | Shielded | 50mOhm | 10 @ 7.96MHz | 200MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLFC453232T-6R8M-PFFIXED IND 6.8UH 300MA 140MOHM SM TDK Corporation |
0 |
|
规格书 |
NLFC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 300 mA | - | Shielded | 140mOhm | 10 @ 7.96MHz | 28MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLFC453232T-680K-PFFIXED IND 68UH 100MA 1.2 OHM SMD TDK Corporation |
0 |
|
规格书 |
NLFC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±10% | 100 mA | - | Shielded | 1.2Ohm | 10 @ 2.52MHz | 10MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLFC453232T-4R7M-PFFIXED IND 4.7UH 400MA 100MOHM SM TDK Corporation |
0 |
|
规格书 |
NLFC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 400 mA | - | Shielded | 100mOhm | 10 @ 7.96MHz | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLFC453232T-470K-PFFIXED IND 47UH 120MA 850MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLFC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±10% | 120 mA | - | Shielded | 850mOhm | 10 @ 2.52MHz | 11.5MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLFC453232T-3R3M-PFFIXED IND 3.3UH 460MA 90MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLFC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±20% | 460 mA | - | Shielded | 90mOhm | 10 @ 7.96MHz | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
