固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

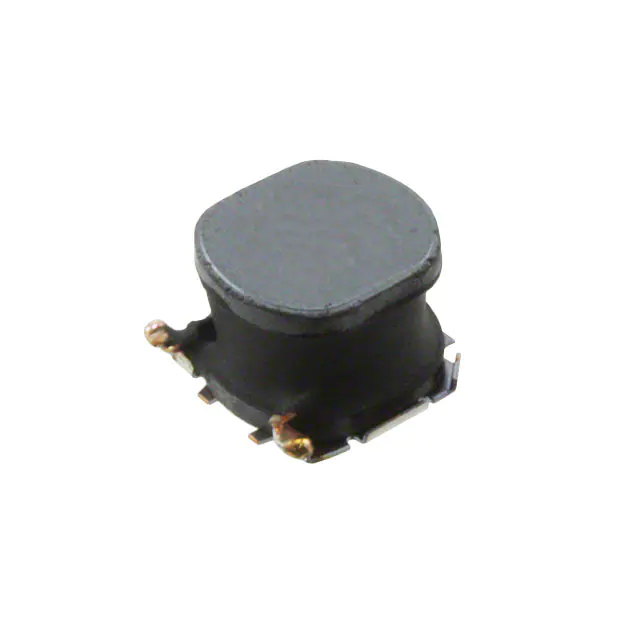

VLP6045LT-1R0NFIXED IND 1UH 6.5A 17 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 6.5 A | 8.6A | Shielded | 17mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.177" (4.50mm) |
|
|
VLP6045LT-1R5NFIXED IND 1.5UH 5.4A 24 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 5.4 A | 7.2A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.177" (4.50mm) |
|
|
VLP6045LT-2R2NFIXED IND 2.2UH 5.1A 26 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.1 A | 6.4A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.177" (4.50mm) |
|
|
VLP6045LT-3R3NFIXED IND 3.3UH 4.6A 33 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.6 A | 5.2A | Shielded | 33mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.177" (4.50mm) |
|

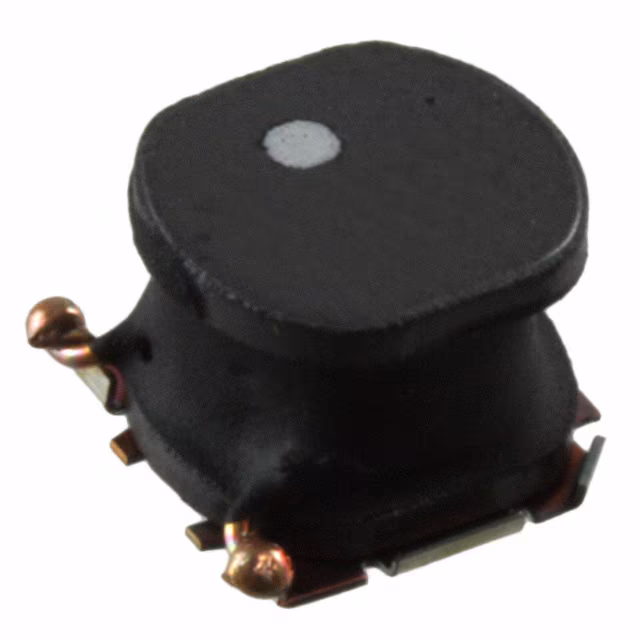

VLP6045LT-4R7MFIXED IND 4.7UH 4.1A 38 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.1 A | 4.4A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.177" (4.50mm) |
|
|
VLP6045LT-6R8MFIXED IND 6.8UH 3.3A 57 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.3 A | 3.8A | Shielded | 57mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.177" (4.50mm) |
|
|
VLP6045LT-100MFIXED IND 10UH 3A 72 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3 A | 3.2A | Shielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.177" (4.50mm) |
|
|
VLP6045LT-150MFIXED IND 15UH 2.3A 112 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.3 A | 2.5A | Shielded | 112mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.177" (4.50mm) |
|
|
VLP6045LT-220MFIXED IND 22UH 2A 140 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2 A | 2.1A | Shielded | 140mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.177" (4.50mm) |
|
|
VLP6045LT-330MFIXED IND 33UH 1.5A 202 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.5 A | 1.6A | Shielded | 202mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.177" (4.50mm) |
