上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NL453232T-8R2J-PFFIXED IND 8.2UH 270MA 1.4OHM SMD TDK Corporation |
0 |
|
规格书 |
NL | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 8.2 µH | ±5% | 270 mA | - | Unshielded | 1.4Ohm Max | 50 @ 7.96MHz | 25MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NL453232T-2R7J-PFFIXED IND 2.7UH 370MA 750MOHM SM TDK Corporation |
0 |
|
规格书 |
NL | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.7 µH | ±5% | 370 mA | - | Unshielded | 750mOhm Max | 50 @ 7.96MHz | 50MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NL453232T-1R8J-PFFIXED IND 1.8UH 390MA 650MOHM SM TDK Corporation |
0 |
|
规格书 |
NL | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.8 µH | ±5% | 390 mA | - | Unshielded | 650mOhm Max | 50 @ 7.96MHz | 60MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
VLC6045T-100MFIXED IND 10UH 2.5A 58 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 2.5 A | 2.5A | Shielded | 58mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

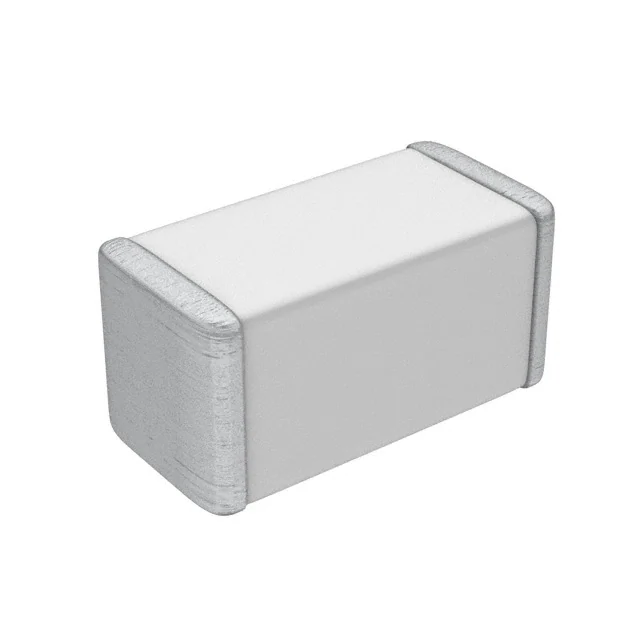

MLK1005SR27JTD25FIXED IND 270NH 70MA 6.5 OHM SMD TDK Corporation |
63 |
|
规格书 |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 270 nH | ±5% | 70 mA | - | Unshielded | 6.5Ohm Max | 6 @ 100MHz | 900MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MLK1005SR12JTD25FIXED IND 120NH 100MA 3 OHM SMD TDK Corporation |
35 |
|
规格书 |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 120 nH | ±5% | 100 mA | - | Unshielded | 3Ohm Max | 6 @ 100MHz | 1.1GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
NLHV25T-R33J-PFFIXED IND 330NH 400MA 680MOHM SM TDK Corporation |
14 |
|
规格书 |
NLHV | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 nH | ±5% | 400 mA | - | Unshielded | 680mOhm Max | 40 @ 25.2MHz | 400MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
NLHV25T-R15J-PFFIXED IND 150NH 500MA 420MOHM SM TDK Corporation |
3 |
|
规格书 |
NLHV | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 150 nH | ±5% | 500 mA | - | Unshielded | 420mOhm Max | 30 @ 25.2MHz | 550MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
MLK1005S1N8STD25FIXED IND 1.8NH 500MA 170MOHM SM TDK Corporation |
0 |
|
规格书 |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.8 nH | ±0.3nH | 500 mA | - | Unshielded | 170mOhm Max | 6 @ 100MHz | 8.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MLK1005S2N2STD25FIXED IND 2.2NH 500MA 180MOHM SM TDK Corporation |
0 |
|
规格书 |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 2.2 nH | ±0.3nH | 500 mA | - | Unshielded | 180mOhm Max | 6 @ 100MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
