固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

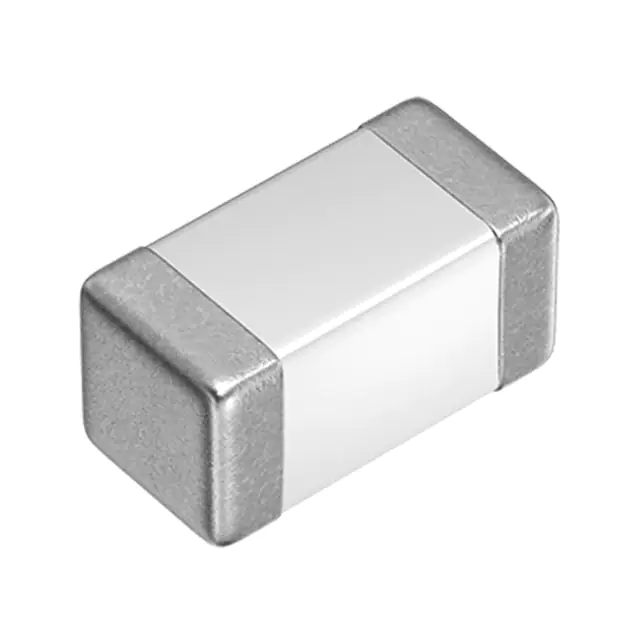

MLK0603L3N0ST000FIXED IND 3NH 200MA 400 MOHM SMD TDK Corporation |
8 |
|
规格书 |
MLK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 3 nH | ±0.3nH | 200 mA | - | Unshielded | 400mOhm Max | 6 @ 300MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLK0603L1N0ST000FIXED IND 1NH 300MA 200 MOHM SMD TDK Corporation |
0 |
|
规格书 |
MLK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1 nH | ±0.3nH | 300 mA | - | Unshielded | 200mOhm Max | 6 @ 300MHz | 12GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLK0603L10NJT000FIXED IND 10NH 200MA 800MOHM SMD TDK Corporation |
0 |
|
规格书 |
MLK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 10 nH | ±5% | 200 mA | - | Unshielded | 800mOhm Max | 6 @ 300MHz | 5.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLK0603L1N1ST000FIXED IND 1.1NH 300MA 220MOHM SM TDK Corporation |
0 |
|
规格书 |
MLK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.1 nH | ±0.3nH | 300 mA | - | Unshielded | 220mOhm Max | 6 @ 300MHz | 11GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
VLS252012CX-4R6M-1FIXED INDUCTOR TDK Corporation |
0 |
|
- |
- | - | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NLV32T-560J-EFDFIXED IND 56UH 55MA 8 OHM SMD TDK Corporation |
2 |
|
规格书 |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±5% | 55 mA | - | Unshielded | 8Ohm Max | 30 @ 2.52MHz | 13MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
MLG1608B2N7STD25FIXED IND 2.7NH 600MA 120MOHM SM TDK Corporation |
0 |
|
规格书 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 2.7 nH | ±0.3nH | 600 mA | - | Unshielded | 120mOhm Max | 10 @ 100MHz | 7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608B3N3STD25FIXED IND 3.3NH 600MA 120MOHM SM TDK Corporation |
0 |
|
规格书 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 3.3 nH | ±0.3nH | 600 mA | - | Unshielded | 120mOhm Max | 10 @ 100MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608B3N9STD25FIXED IND 3.9NH 600MA 140MOHM SM TDK Corporation |
0 |
|
规格书 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 3.9 nH | ±0.3nH | 600 mA | - | Unshielded | 140mOhm Max | 10 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLG1608B4N7STD25FIXED IND 4.7NH 600MA 150MOHM SM TDK Corporation |
0 |
|
规格书 |
MLG | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic, Non-Magnetic | 4.7 nH | ±0.3nH | 600 mA | - | Unshielded | 150mOhm Max | 10 @ 100MHz | 5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
