| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

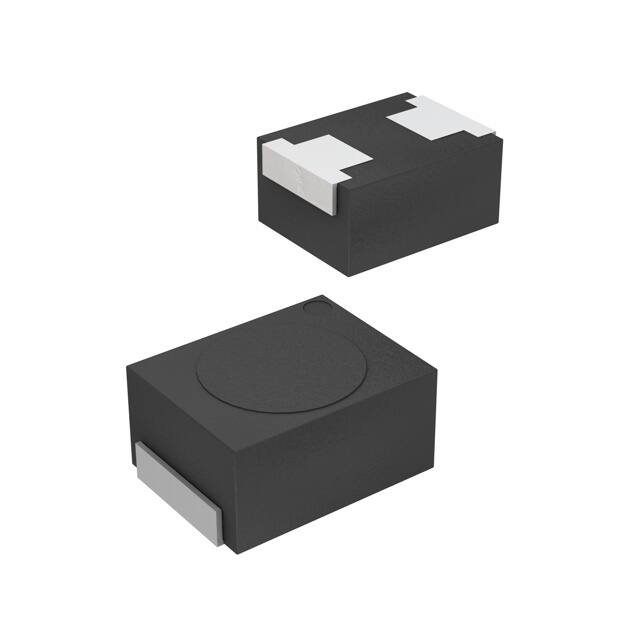

FL3215T-150KFIXED IND 15UH 500MA 500MOHM SMD TDK Corporation |
0 |
|
规格书 |
FLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 500 mA | 400mA | Unshielded | 500mOhm | - | 25MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.065" (1.65mm) |
|
|
FL3215T-470KFIXED IND 47UH 300MA 1.4 OHM SMD TDK Corporation |
0 |
|
规格书 |
FLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 300 mA | 210mA | Unshielded | 1.4Ohm | - | 14MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.065" (1.65mm) |
|

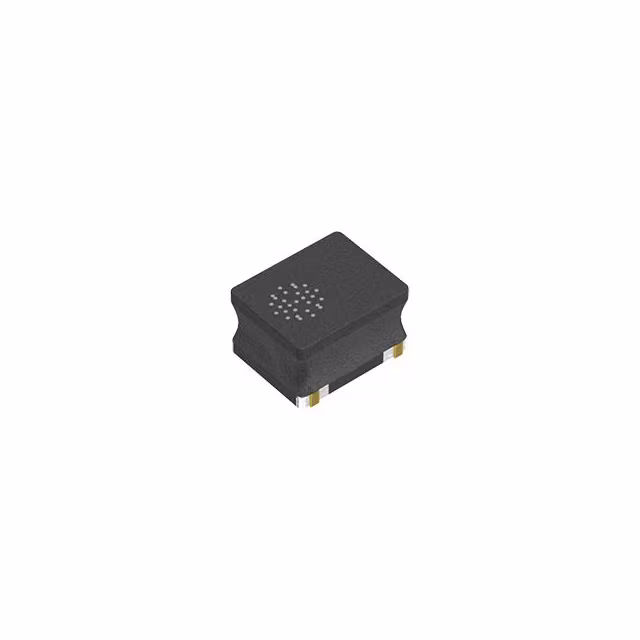

VLS201612CX-R24M-1FIXED IND 240NH 3.4A 31 MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLS-CX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 240 nH | ±20% | 3.4 A | 3.42A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
VLS201612CX-R68M-1FIXED IND 680NH 2.35A 62MOHM SMD TDK Corporation |
0 |
|
规格书 |
VLS-CX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 2.35 A | 2.75A | Shielded | 62mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
NLFV32T-150K-EFTFIXED IND 15UH 140MA 360MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLFV | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 140 mA | - | Shielded | 360mOhm Max | - | - | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLFV32T-151K-EFTFIXED IND 150UH 50MA 3.48OHM SMD TDK Corporation |
0 |
|
规格书 |
NLFV | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 50 mA | - | Shielded | 3.48Ohm Max | - | - | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLFV32T-1R0M-EFTFIXED IND 1UH 750MA 72 MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLFV | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 750 mA | - | Shielded | 72mOhm Max | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLFV32T-1R5M-EFTFIXED IND 1.5UH 600MA 84MOHM SMD TDK Corporation |
0 |
|
规格书 |
NLFV | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 600 mA | - | Shielded | 84mOhm Max | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLFV32T-221K-EFTFIXED IND 220UH 40MA 6.12OHM SMD TDK Corporation |
0 |
|
规格书 |
NLFV | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 40 mA | - | Shielded | 6.12Ohm Max | - | - | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLFV32T-2R2M-EFTFIXED IND 2.2UH 500MA 108MOHM SM TDK Corporation |
0 |
|
规格书 |
NLFV | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 500 mA | - | Shielded | 108mOhm Max | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
