固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

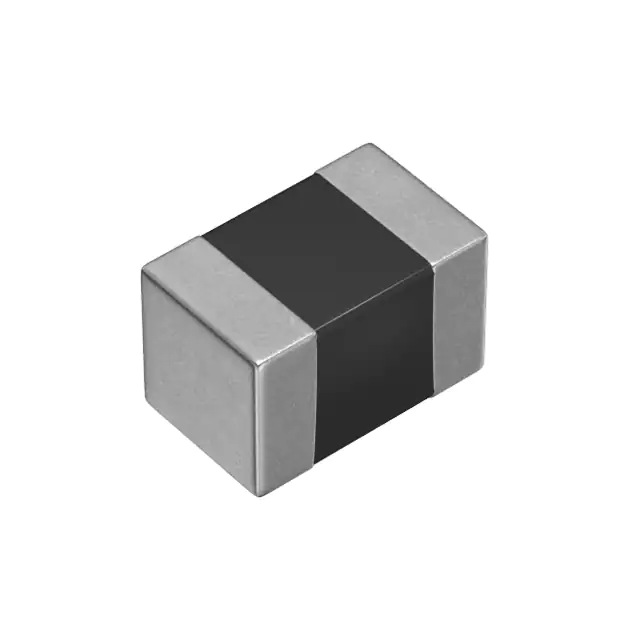

MLZ2012M3R3ATD69FIXED IND 3.3UH 500MA 200MOHM SM TDK Corporation |
1,578 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 500 mA | 350mA | Shielded | 200mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

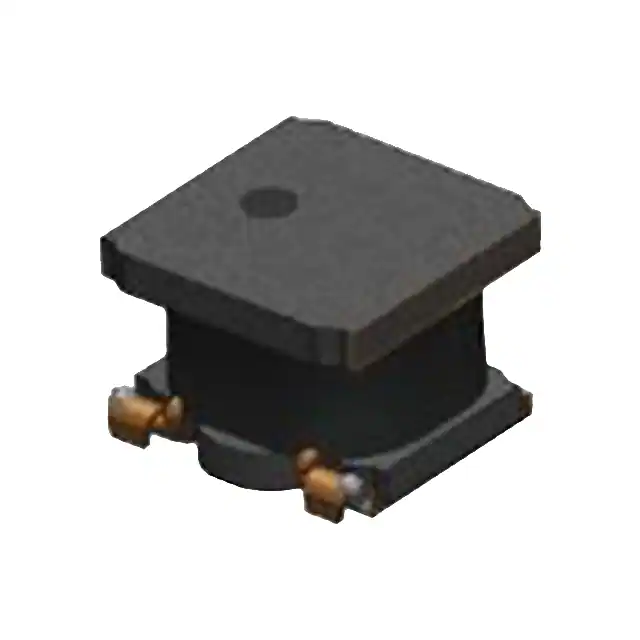

VLS6045EX-100MFIXED IND 10UH 3.4A 61 MOHM SMD TDK Corporation |
174,445 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.4 A | 3.9A | Shielded | 47mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

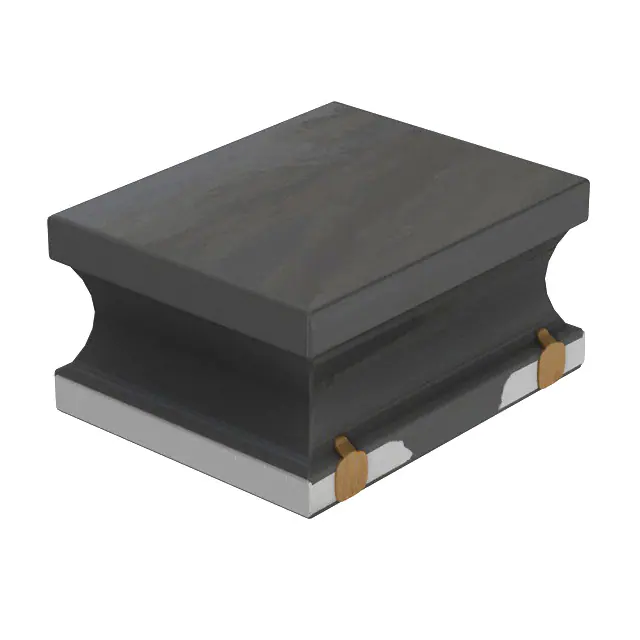

VLS201612CX-100M-1FIXED IND 10UH 770MA 540MOHM SMD TDK Corporation |
51,403 |
|
规格书 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 770 mA | 610mA | Shielded | 540mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
VLS252012ET-100MFIXED IND 10UH 590MA 756MOHM SMD TDK Corporation |
68,335 |
|
规格书 |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 590 mA | 730mA | Shielded | 756mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
VLS252010ET-1R0NFIXED IND 1UH 1.75A 84 MOHM SMD TDK Corporation |
23,529 |
|
规格书 |
VLS | 1008 (2520 Metric) | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.75 A | 1.75A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

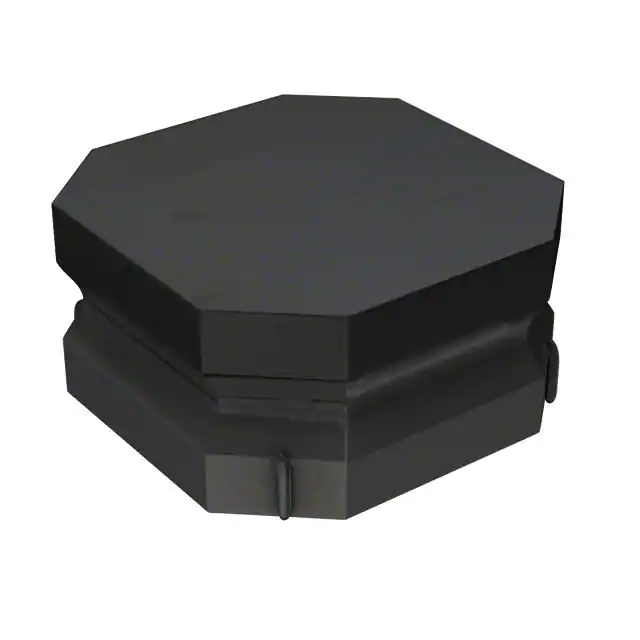

VLS3015ET-100MFIXED IND 10UH 700MA 288MOHM SMD TDK Corporation |
12,973 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 700 mA | 700mA | Shielded | 288mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS3015ET-220MFIXED IND 22UH 480MA 660MOHM SMD TDK Corporation |
10,278 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 480 mA | 480mA | Shielded | 660mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS201610CX-2R2M-1FIXED IND 2.2UH 1.53A 163MOHM SM TDK Corporation |
6,460 |
|
规格书 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.53 A | 1.31A | Shielded | 163mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
VLS5045EX-3R3NFIXED IND 3.3UH 4.2A 35.1MOHM SM TDK Corporation |
64,395 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.2 A | 5.2A | Shielded | 35.1mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|

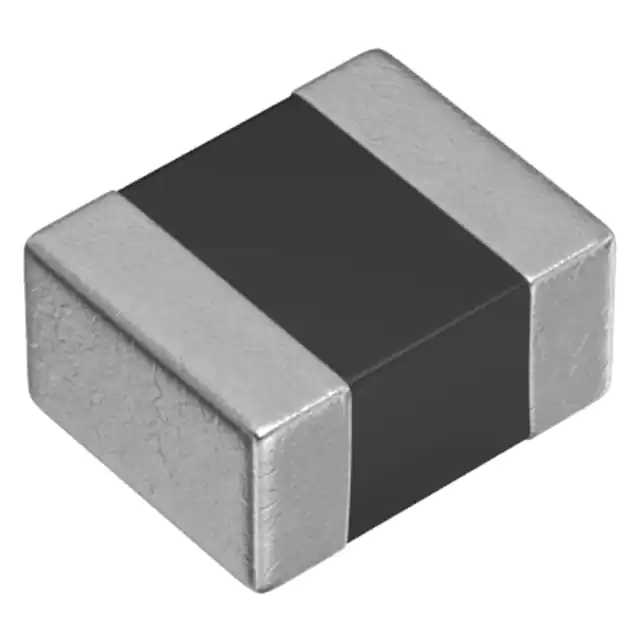

TFM252012ALMAR15MTAAFIXED IND 150NH 7.3A 11 MOHM SMD TDK Corporation |
60,459 |
|
规格书 |
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 150 nH | ±20% | 7.3 A | 9A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
