固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

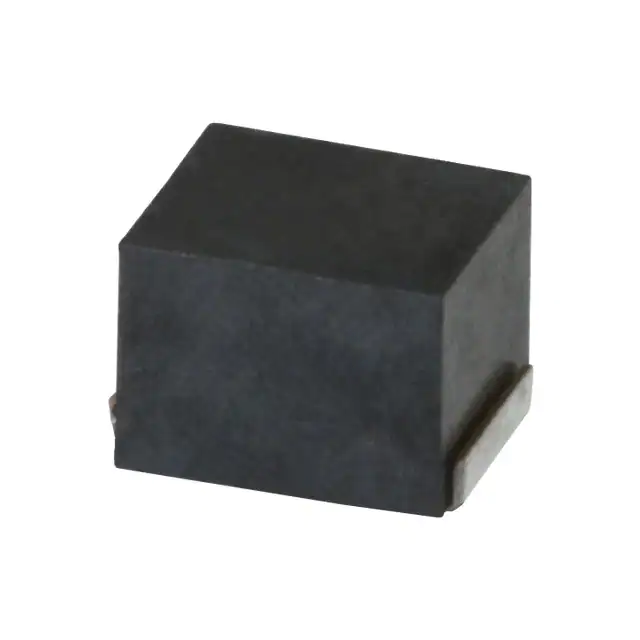

NLV32T-1R0J-PFFIXED IND 1UH 400MA 700 MOHM SMD TDK Corporation |
191,899 |
|
规格书 |
NLV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 400 mA | - | Unshielded | 700mOhm Max | 30 @ 7.96MHz | 120MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NLCV32T-100K-PFFIXED IND 10UH 450MA 468MOHM SMD TDK Corporation |
37,485 |
|
规格书 |
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 450 mA | - | Unshielded | 468mOhm Max | 15 @ 2.52MHz | 30MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
MLZ1608N100LTD25FIXED IND 10UH 300MA 600MOHM SMD TDK Corporation |
22,578 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±20% | 300 mA | 60mA | Shielded | 600mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

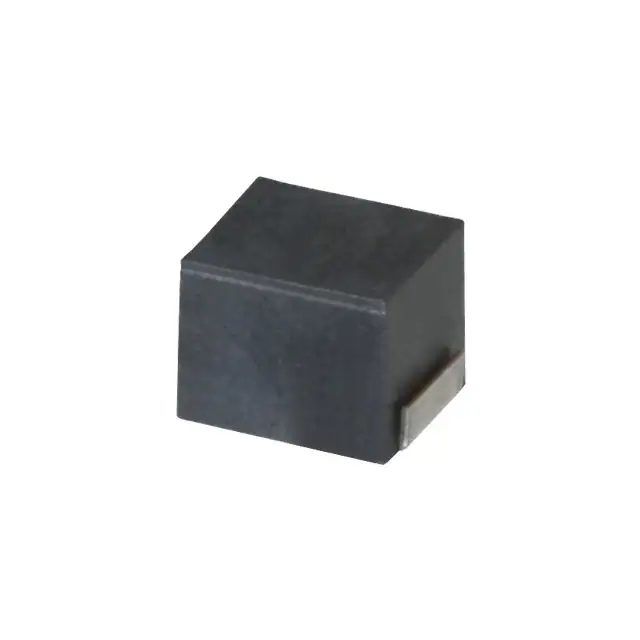

NLFV25T-100K-PFFIXED IND 10UH 155MA 432MOHM SMD TDK Corporation |
43,758 |
|
规格书 |
NLFV | Nonstandard | Tape & Reel (TR) | Last Time Buy | Wirewound | - | 10 µH | ±10% | 155 mA | - | Shielded | 432mOhm Max | 10 @ 2.52MHz | - | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV32T-100J-PFFIXED IND 10UH 150MA 2.1 OHM SMD TDK Corporation |
19,323 |
|
规格书 |
NLV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 150 mA | - | Unshielded | 2.1Ohm Max | 30 @ 2.52MHz | 30MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLCV32T-1R0M-PFFIXED IND 1UH 1A 78 MOHM SMD TDK Corporation |
42,147 |
|
规格书 |
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1 A | - | Unshielded | 78mOhm Max | 10 @ 7.96MHz | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLCV32T-330K-EFFIXED IND 33UH 240MA 1.43OHM SMD TDK Corporation |
22,005 |
|
规格书 |
NLCV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 240 mA | - | Unshielded | 1.43Ohm Max | 15 @ 2.52MHz | 17MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLCV32T-100K-EFFIXED IND 10UH 450MA 468MOHM SMD TDK Corporation |
17,755 |
|
规格书 |
NLCV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 450 mA | - | Unshielded | 468mOhm Max | 15 @ 2.52MHz | 30MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLV32T-221J-PFFIXED IND 220UH 50MA 21 OHM SMD TDK Corporation |
192,172 |
|
规格书 |
NLV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 50 mA | - | Unshielded | 21Ohm Max | 20 @ 796kHz | 7MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLCV32T-1R0M-PFRFIXED IND 1UH 1.7A 66 MOHM SMD TDK Corporation |
86,871 |
|
规格书 |
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.7 A | - | Unshielded | 66mOhm Max | 15 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
