上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLV32T-181J-EFFIXED IND 180UH 60MA 17 OHM SMD TDK Corporation |
7,846 |
|
规格书 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 60 mA | - | Unshielded | 17Ohm Max | 20 @ 796kHz | 7MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NLV25T-470J-PFFIXED IND 47UH 80MA 11.1 OHM SMD TDK Corporation |
7,081 |
|
规格书 |
NLV-PF | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 80 mA | - | Unshielded | 11.1Ohm Max | 20 @ 2.52MHz | 17MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV32T-R68J-EFFIXED IND 680NH 450MA 600MOHM SM TDK Corporation |
6,198 |
|
规格书 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±5% | 450 mA | - | Unshielded | 600mOhm Max | 30 @ 25.2MHz | 160MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLV25T-4R7J-EFFIXED IND 4.7UH 175MA 2.3OHM SMD TDK Corporation |
3,895 |
|
规格书 |
NLV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 175 mA | - | Unshielded | 2.3Ohm Max | 30 @ 7.96MHz | 43MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV32T-271J-EFFIXED IND 270UH 45MA 28 OHM SMD TDK Corporation |
3,634 |
|
规格书 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±5% | 45 mA | - | Unshielded | 28Ohm Max | 20 @ 796kHz | 6MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLV32T-220J-PFFIXED IND 22UH 110MA 3.7 OHM SMD TDK Corporation |
3,521 |
|
规格书 |
NLV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±5% | 110 mA | - | Unshielded | 3.7Ohm Max | 30 @ 2.52MHz | 20MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLV32T-680J-EFFIXED IND 68UH 50MA 9 OHM SMD TDK Corporation |
2,340 |
|
规格书 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 50 mA | - | Unshielded | 9Ohm Max | 30 @ 2.52MHz | 12MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

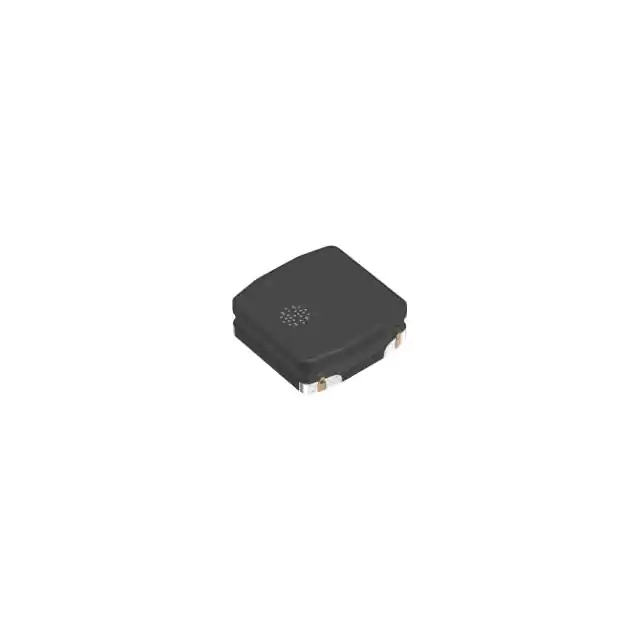

VLS3010CX-100M-1FIXED IND 10UH SMD TDK Corporation |
2,288 |
|
规格书 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
KLZ2012MHR100HTD25FIXED IND 10UH 300MA 884MOHM SMD TDK Corporation |
2,178 |
|
规格书 |
KLZ-HR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±20% | 300 mA | 200mA | Shielded | 884mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 2 MHz | Soft Termination | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
.jpg)
|
MLJ1608WR16JT000FIXED IND 160NH 700MA 156MOHM SM TDK Corporation |
46,328 |
|
规格书 |
MLJ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 160 nH | ±5% | 700 mA | 750mA | Shielded | 156mOhm Max | 15 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
