固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
MLF1608DR82JT000FIXED IND 820NH 70MA 1.4 OHM SMD TDK Corporation |
1,268 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±5% | 70 mA | - | Shielded | 1.4Ohm Max | 15 @ 25MHz | 130MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLF1608A2R2JT000FIXED IND 2.2UH 30MA 1 OHM SMD TDK Corporation |
1,129 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±5% | 30 mA | - | Shielded | 1Ohm Max | 35 @ 10MHz | 80MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
MLP2012S1R0MT0S1FIXED IND 1UH 1A 208 MOHM SMD TDK Corporation |
776,772 |
|
规格书 |
MLP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1 A | - | Shielded | 208mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
NLV32T-3R3J-EFFIXED IND 3.3UH 260MA 1.2OHM SMD TDK Corporation |
34,158 |
|
规格书 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 260 mA | - | Unshielded | 1.2Ohm Max | 30 @ 7.96MHz | 60MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
 MHQ Series.jpg)
|
MHQ1005P10NJTD25FIXED IND 10NH 500MA 190MOHM SMD TDK Corporation |
16,464 |
|
规格书 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 10 nH | ±5% | 500 mA | - | Unshielded | 190mOhm Max | 23 @ 250MHz | 3.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|

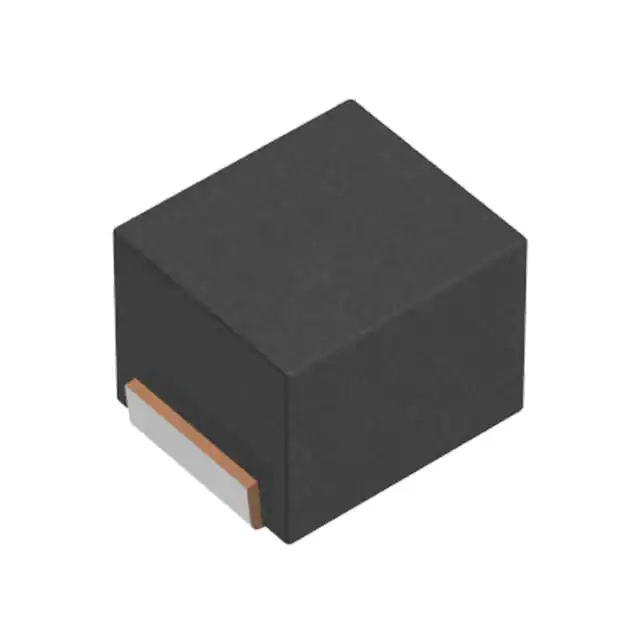

NLCV25T-100K-PFFIXED IND 10UH 210MA 2.197OHM SM TDK Corporation |
14,027 |
|
规格书 |
NLCV-PF | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 210 mA | - | Unshielded | 2.197Ohm Max | 30 @ 2.52MHz | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
NLCV32T-4R7M-PFFIXED IND 4.7UH 620MA 260MOHM SM TDK Corporation |
13,682 |
|
规格书 |
NLCV-PF | 1210 (3225 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 620 mA | - | Unshielded | 260mOhm Max | 15 @ 7.96MHz | 46MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLV32T-151J-EFFIXED IND 150UH 65MA 15 OHM SMD TDK Corporation |
10,047 |
|
规格书 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 65 mA | - | Unshielded | 15Ohm Max | 20 @ 796kHz | 8MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
MLZ1005M1R0WT000FIXED IND 1UH 450MA 350 MOHM SMD TDK Corporation |
9,731 |
|
规格书 |
MLZ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 450 mA | 100mA | Shielded | 350mOhm | - | 170MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
NLV32T-121J-EFFIXED IND 120UH 70MA 11 OHM SMD TDK Corporation |
9,116 |
|
规格书 |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 70 mA | - | Unshielded | 11Ohm Max | 20 @ 796kHz | 10MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
