固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLV25T-150J-PFFIXED IND 15UH 140MA 4.4 OHM SMD TDK Corporation |
8,128 |
|
规格书 |
NLV-PF | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 140 mA | - | Unshielded | 4.4Ohm Max | 25 @ 2.52MHz | 26MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
 MHQ Series.jpg)
|
MHQ1005P0N7BT000FIXED IND 0.7NH 1.2A 30 MOHM SMD TDK Corporation |
7,775 |
|
规格书 |
MHQ-P | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 0.7 nH | ±0.1nH | 1.2 A | - | Unshielded | 30mOhm Max | - | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 1006 (0402) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MLF2012A4R7KT000FIXED IND 4.7UH 30MA 700MOHM SMD TDK Corporation |
6,162 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±10% | 30 mA | - | Shielded | 700mOhm Max | 45 @ 10MHz | 50MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
.jpg)
|
MLF1608A1R5JT000FIXED IND 1.5UH 50MA 700MOHM SMD TDK Corporation |
5,813 |
|
规格书 |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±5% | 50 mA | - | Shielded | 700mOhm Max | 35 @ 10MHz | 100MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MHQ1005P1N5BT000FIXED IND 1.5NH 1A 40 MOHM SMD TDK Corporation |
5,450 |
|
规格书 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.5 nH | ±0.1nH | 1 A | - | Unshielded | 40mOhm Max | 23 @ 250MHz | 11GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MLF2012E120KT000FIXED IND 12UH 15MA 900 MOHM SMD TDK Corporation |
4,001 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 12 µH | ±10% | 15 mA | - | Shielded | 900mOhm Max | 50 @ 2MHz | 25MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
MLZ1608N6R8LTD25FIXED IND 6.8UH 350MA 500MOHM SM TDK Corporation |
3,161 |
|
规格书 |
MLZ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±20% | 350 mA | 80mA | Shielded | 500mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |

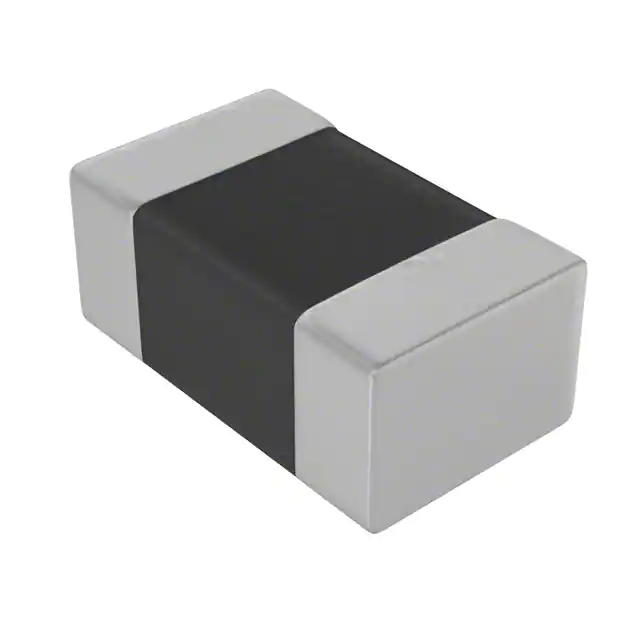

 TDK.jpg)
|
MLF2012C820KT000FIXED IND 82UH 2MA 3 OHM SMD TDK Corporation |
3,027 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 82 µH | ±10% | 2 mA | - | Shielded | 3Ohm Max | 25 @ 1MHz | 8MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
MLF1005G2R2JT000FIXED IND 2.2UH 30MA 1.3 OHM SMD TDK Corporation |
125,360 |
|
规格书 |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±5% | 30 mA | - | Shielded | 1.3Ohm Max | 30 @ 10MHz | 80MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MHQ1005P10NGT000FIXED IND 10NH 500MA 190MOHM SMD TDK Corporation |
87,920 |
|
规格书 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 10 nH | ±2% | 500 mA | - | Unshielded | 190mOhm Max | 23 @ 250MHz | 3.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
