固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLZ2012E100MT000FIXED IND 10UH 60MA 400 MOHM SMD TDK Corporation |
19,958 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ferrite | 10 µH | ±20% | 60 mA | - | Shielded | 400mOhm | - | - | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
MLF2012A3R3KT000FIXED IND 3.3UH 50MA 600MOHM SMD TDK Corporation |
13,589 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±10% | 50 mA | - | Shielded | 600mOhm Max | 45 @ 10MHz | 60MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLZ2012M2R2HTD25FIXED IND 2.2UH 600MA 160MOHM SM TDK Corporation |
13,155 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 600 mA | 400mA | Shielded | 160mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLZ2012N220LTD25FIXED IND 22UH 300MA 670MOHM SMD TDK Corporation |
12,394 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 300 mA | 70mA | Shielded | 670mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF2012C680KT000FIXED IND 68UH 2MA 2.9 OHM SMD TDK Corporation |
11,390 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 68 µH | ±10% | 2 mA | - | Shielded | 2.9Ohm Max | 25 @ 1MHz | 9MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|

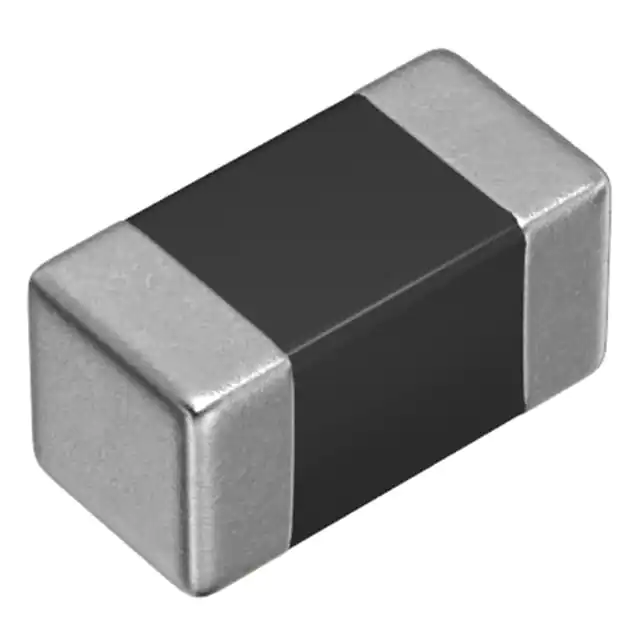

MLJ1005WR15JT000FIXED IND 150NH 450MA 450MOHM SM TDK Corporation |
11,198 |
|
规格书 |
MLJ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 150 nH | ±5% | 450 mA | 350mA | Shielded | 450mOhm Max | 15 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF2012A1R0KT000FIXED IND 1UH 80MA 300 MOHM SMD TDK Corporation |
10,412 |
|
规格书 |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±10% | 80 mA | - | Shielded | 300mOhm Max | 45 @ 10MHz | 120MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
NLV25T-3R3J-PFFIXED IND 3.3UH 185MA 1.9OHM SMD TDK Corporation |
9,904 |
|
规格书 |
NLV-PF | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 185 mA | - | Unshielded | 1.9Ohm Max | 30 @ 7.96MHz | 55MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
MLZ2012M1R0HTD25FIXED IND 1UH 800MA 100 MOHM SMD TDK Corporation |
8,585 |
|
规格书 |
MLZ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 800 mA | 700mA | Shielded | 100mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
 MHQ Series.jpg)
|
MHQ1005P5N6CT000FIXED IND 5.6NH 800MA 130MOHM SM TDK Corporation |
8,515 |
|
规格书 |
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 5.6 nH | ±0.2nH | 800 mA | - | Unshielded | 130mOhm Max | 23 @ 250MHz | 4.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
