上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLBU10060120T-R10L-1FIXED IND 100NH 83A 0.12MOHM SMD TDK Corporation |
300 |
|
规格书 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 83 A | 133A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|

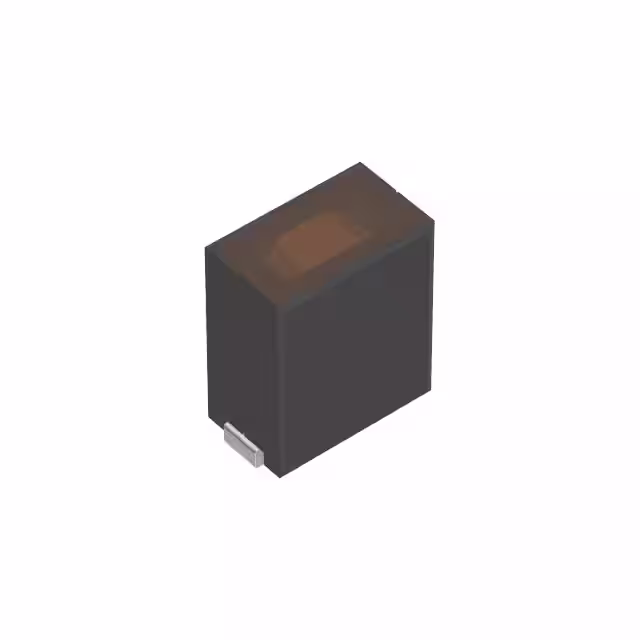

VLBU10060120T-R09L-1FIXED IND 90NH 83A 0.12 MOHM SMD TDK Corporation |
600 |
|
规格书 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 90 nH | ±15% | 83 A | 140A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
VLBU10060120T-R15L-1FIXED IND 150NH 83A 0.12MOHM SMD TDK Corporation |
195 |
|
规格书 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±15% | 83 A | 82A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|

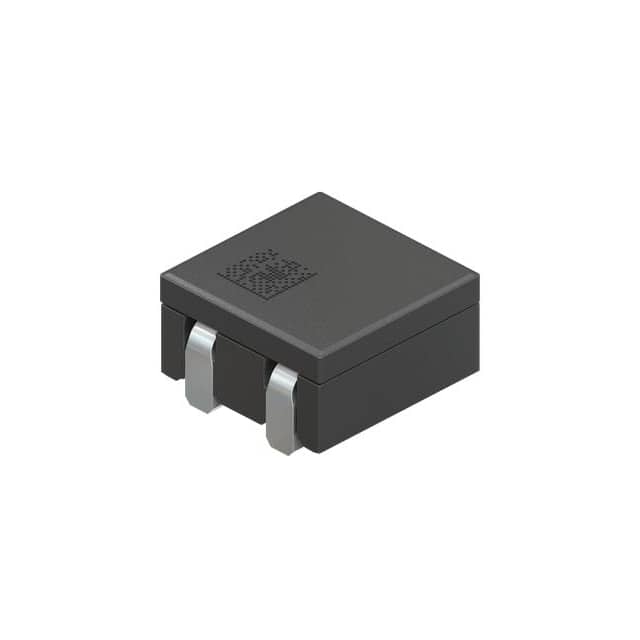

HPL505032F1060MRD3PFIXED IND 60NH 34A 777 MOHM SMD TDK Corporation |
1,125 |
|
规格书 |
HPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 60 nH | ±20% | 34 A | - | Unshielded | 0.77mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.126" (3.20mm) |
|
SPM12565VT-2R2M-DFIXED IND 2.2UH 20.2A 0.0034OHM TDK Corporation |
1,098 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 20.2 A | 32.8A | Shielded | 3.4mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
|
HPL758040FR22MRD3PFIXED IND 220NH 43A 0.61MOHM SMD TDK Corporation |
2,708 |
|
规格书 |
HPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 nH | ±20% | 43 A | 27.5A | Unshielded | 0.61mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.295" W (8.00mm x 7.50mm) | 0.157" (4.00mm) |
|
SPM12565VT-100M-DFIXED IND 10UH 9A 0.017OHM SMD TDK Corporation |
500 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 9 A | 16.7A | Shielded | 17mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SPM12565VT-220M-DFIXED IND 22UH 6.9A 0.031OHM SMD TDK Corporation |
652 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 6.9 A | 10.4A | Shielded | 31mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
|

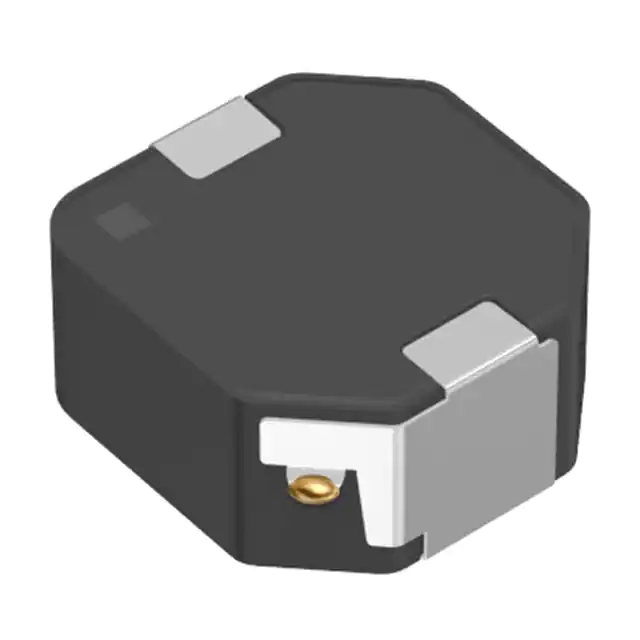

SPM12565VT-3R3M-DFIXED IND 3.3UH 16.8A 0.0049OHM TDK Corporation |
488 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 16.8 A | 25.5A | Shielded | 4.9mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
|
MLG1005S12NHT000FIXED IND 12NH 400MA 400MOHM SMD TDK Corporation |
22,026 |
|
规格书 |
MLG | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 12 nH | ±3% | 400 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 2.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
