| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLF12555T-101M-DFIXED IND 100UH 1.3A 228MOHM SMD TDK Corporation |
122 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.3 A | 2.1A | Shielded | 228mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|
SPM10040T-100M-HZFIXED IND 10UH 8A 29.34MOHM SMD TDK Corporation |
965 |
|
规格书 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 10 µH | ±20% | 8 A | 4.8A | Shielded | 29.34mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CLF12555T-150M-DFIXED IND 15UH 3.2A 37.2MOHM SMD TDK Corporation |
923 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.2 A | 5.4A | Shielded | 37.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|
|
CLF12555T-470M-DFIXED IND 47UH 1.8A 120 MOHM SMD TDK Corporation |
289 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.8 A | 3.2A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|
|
CLF12555T-4R7N-DFIXED IND 4.7UH 5.3A 15.2MOHM SM TDK Corporation |
232 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.3 A | 9.6A | Shielded | 15.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | 0.230" (5.85mm) |
|

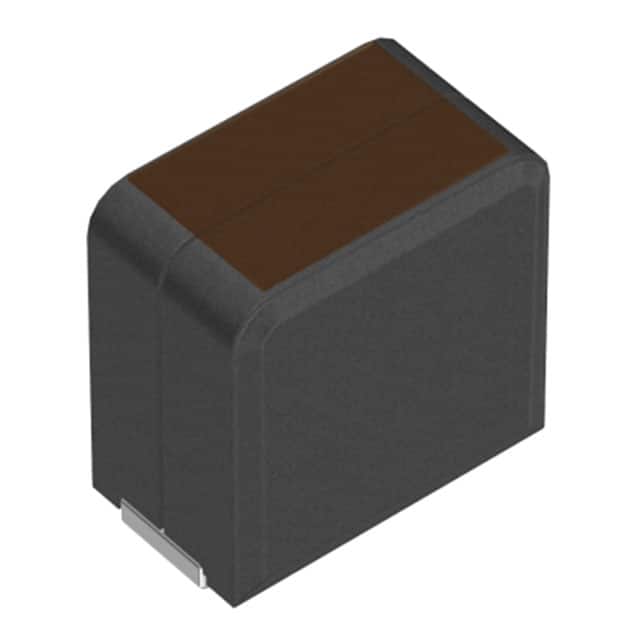

VLBU805080T-R10LFIXED IND 100NH 65A 0.2 MOHM SMD TDK Corporation |
984 |
|
规格书 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 65 A | 75A | Unshielded | 0.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.197" W (8.00mm x 5.00mm) | 0.315" (8.00mm) |
|
VLBU6565100T-R20LFIXED IND 200NH 70A 0.18MOHM SMD TDK Corporation |
981 |
|
规格书 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±15% | 70 A | 37A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.394" (10.00mm) |
|
SLF12575T-221M1R3-HFIXED IND 220UH 1.3A 309.6 MOHM TDK Corporation |
1,614 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.3 A | 1.3A | Shielded | 309.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
SLF12575T-680M2R0-HFIXED IND 68UH 2A 93.36 MOHM SMD TDK Corporation |
500 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2 A | 2A | Shielded | 93.36mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
VLBS1007083T-R10LFIXED IND 100NH 70A 0.18MOHM SMD TDK Corporation |
402 |
|
规格书 |
VLBS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±15% | 70 A | 115A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.331" (8.40mm) |
