固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLF7045T-221MR40-HFIXED IND 220UH 400MA 996MOHM SM TDK Corporation |
1,375 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 400 mA | 400mA | Shielded | 996mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
CLF7045T-6R8N-HFIXED IND 6.8UH 3.3A 27 MOHM SMD TDK Corporation |
1,188 |
|
规格书 |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.3 A | 3A | Shielded | 27mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
SLF7045T-220M1R3-HFIXED IND 22UH 1.3A 98.4MOHM SMD TDK Corporation |
280 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.3 A | 1.3A | Shielded | 98.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SLF10165T-4R7N4R73PFFIXED IND 4.7UH 4.7A 15.2MOHM SM TDK Corporation |
1,291 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 4.7 A | 6.1A | Shielded | 15.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.268" (6.80mm) |
|
|
SLF10165T-6R8N4R33PFFIXED IND 6.8UH 4.3A 18.2MOHM SM TDK Corporation |
724 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.3 A | 4.6A | Shielded | 18.2mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.268" (6.80mm) |
|
SLF7045T-471MR31-HINDUCTORS FOR POWER CIRCUITS, FO TDK Corporation |
2,902 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 310 mA | 310mA | Shielded | 1.8Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
CLF10040T-221M-DFIXED IND 220UH 700MA 624MOHM SM TDK Corporation |
1,288 |
|
规格书 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 700 mA | 880mA | Shielded | 624mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.382" W (10.00mm x 9.70mm) | 0.161" (4.10mm) |
|
SPM6550T-R47MFIXED IND 470NH 20.1A 2.9MOHM SM TDK Corporation |
1,950 |
|
规格书 |
SPM | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 20.1 A | 20.5A | Shielded | 2.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
SPM5030T-R75MFIXED IND 750NH 11.3A 9.35 MOHM TDK Corporation |
1,750 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 750 nH | ±20% | 11.3 A | 9.7A | Shielded | 9.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.118" (3.00mm) |
|

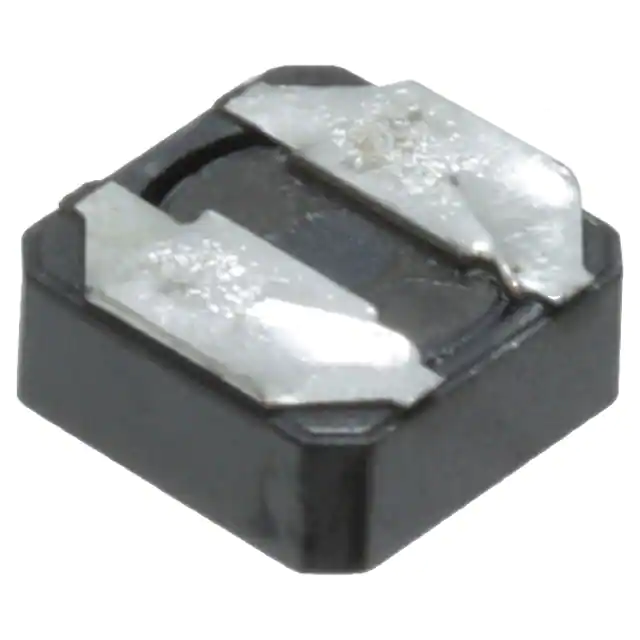

VLCF5024T-6R8N1R1-2FIXED IND 6.8UH 1.11A 61MOHM SMD TDK Corporation |
1,435 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.11 A | 1.11A | Shielded | 61mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.094" (2.40mm) |
