固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLF7032T-680MR59-2PFFIXED IND 68UH 590MA 372MOHM SMD TDK Corporation |
20,430 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 590 mA | - | Shielded | 372mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
SLF7055T-4R7N3R1-3PFFIXED IND 4.7UH 3.1A 36.4MOHM SM TDK Corporation |
4,895 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.1 A | 3.6A | Shielded | 36.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.228" (5.80mm) |
|
|
SLF7032T-3R3M1R9-2PFFIXED IND 3.3UH 1.9A 27.6MOHM SM TDK Corporation |
3,814 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.9 A | - | Shielded | 27.6mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.134" (3.40mm) |
|
|
SLF7055T-150M2R1-3PFFIXED IND 15UH 2.2A 61 MOHM SMD TDK Corporation |
3,443 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 2.1A | Shielded | 61mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.228" (5.80mm) |
|
SPM6530T-1R0M-HZFIXED IND 1UH 14.4A 7.81MOHM SMD TDK Corporation |
3,584 |
|
规格书 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 14.4 A | 9.9A | Shielded | 7.81mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
|
|

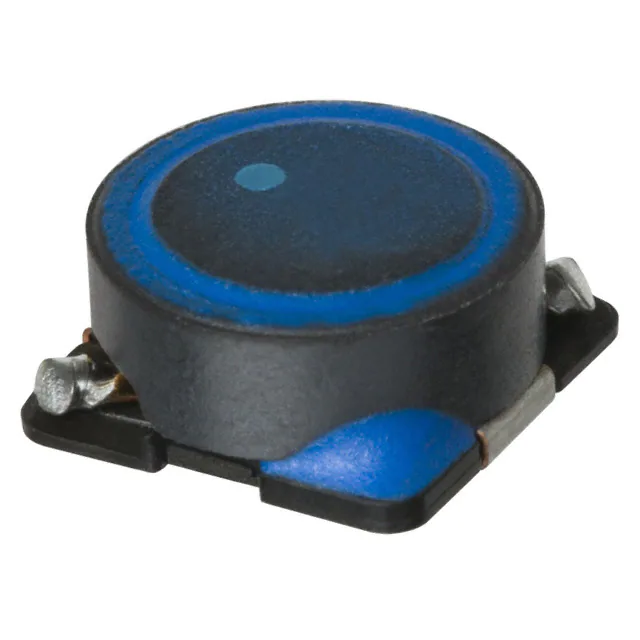

SLF10145T-471MR47-PFFIXED IND 470UH 470MA 1.236 OHM TDK Corporation |
14,997 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 470 mA | 470mA | Shielded | 1.236Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
CLF6045T-4R7N-HFIXED IND 4.7UH 3.2A 23 MOHM SMD TDK Corporation |
4,229 |
|
规格书 |
CLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.2 A | 2.5A | Shielded | 23mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.177" (4.50mm) |
|
SPM6550T-2R2MFIXED IND 2.2UH 13.4A 10.7 MOHM TDK Corporation |
2,879 |
|
规格书 |
SPM | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 13.4 A | 7.9A | Shielded | 10.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
TFM322512ALVA1R5MTAAFIXED IND 1.5UH 3.2A 57 MOHM SMD TDK Corporation |
1,865 |
|
规格书 |
TFM-ALVA | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 3.2 A | 4A | Shielded | 57mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
SLF10145T-3R3N3R7-PFFIXED IND 3.3UH 3.7A 19.3MOHM SM TDK Corporation |
1,628 |
|
规格书 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.7 A | 4.9A | Shielded | 19.3mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
