上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-BR-Series.jpg)
|

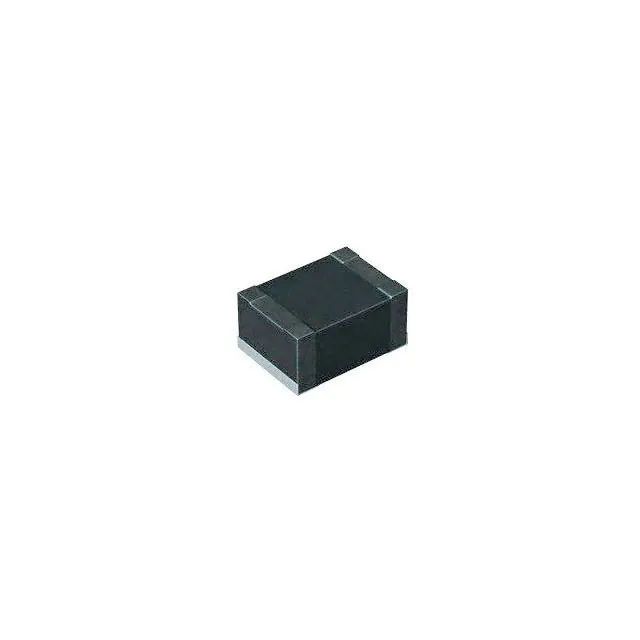

BRL2515T2R2MFIXED IND 2.2UH 1A 135 MOHM SMD Taiyo Yuden |
0 |
|
规格书 |
BR, L Type | 1006 (2515 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1 A | 1A | Unshielded | 135mOhm | - | 100MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1006 (2515 Metric) | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.047" (1.20mm) |
|
|
BRL2515T4R7MDFIXED IND 4.7UH 700MA 344.5 MOHM Taiyo Yuden |
0 |
|
规格书 |
BR, L Type | 1006 (2515 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 700 mA | 650mA | Unshielded | 344.5mOhm Max | - | 60MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1006 (2515 Metric) | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.047" (1.20mm) |
-1,80mm.jpg)
|
CKP20162R2M-TFIXED IND 2.2UH 1.2A 140MOHM SMD Taiyo Yuden |
0 |
|
规格书 |
CK, P Type | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CKP20164R7M-TFIXED IND 4.7UH 900MA 200MOHM SM Taiyo Yuden |
0 |
|
规格书 |
CK, P Type | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 4.7 µH | ±20% | 900 mA | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
-1,45mm.jpg)
|
CKS2125100M-TFIXED IND 10UH 110MA 520MOHM SMD Taiyo Yuden |
0 |
|
规格书 |
CK, S Type | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 10 µH | ±20% | 110 mA | - | Unshielded | 520mOhm Max | - | 24MHz | - | -40°C ~ 85°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CKS21252R2M-TFIXED IND 2.2UH 170MA 190MOHM SM Taiyo Yuden |
0 |
|
规格书 |
CK, S Type | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±20% | 170 mA | - | Unshielded | 190mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CKS21254R7M-TFIXED IND 4.7UH 130MA 300MOHM SM Taiyo Yuden |
0 |
|
规格书 |
CK, S Type | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 4.7 µH | ±20% | 130 mA | - | Unshielded | 300mOhm Max | - | 35MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
NRG4026T150MFIXED IND 15UH 1.1A 110 MOHM SMD Taiyo Yuden |
0 |
|
规格书 |
NR, G Type | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.1 A | 900mA | Shielded | 110mOhm | - | 19MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.102" (2.60mm) |
|
|
NRG4026T330MFIXED IND 33UH 800MA 200MOHM SMD Taiyo Yuden |
0 |
|
规格书 |
NR, G Type | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 800 mA | 540mA | Shielded | 200mOhm | - | 9MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.102" (2.60mm) |
|
|
CKP2012NR47M-TFIXED IND 470NH 1.2A 100MOHM SMD Taiyo Yuden |
0 |
|
规格书 |
CK, P Type | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 470 nH | ±20% | 1.2 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
