固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQ1051N2S-TFIXED IND 1.2NH 930MA 70MOHM SMD Taiyo Yuden |
0 |
|
规格书 |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.2 nH | ±0.3nH | 930 mA | - | Unshielded | 70mOhm Max | 8 @ 100MHz | 10GHz | - | -55°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|

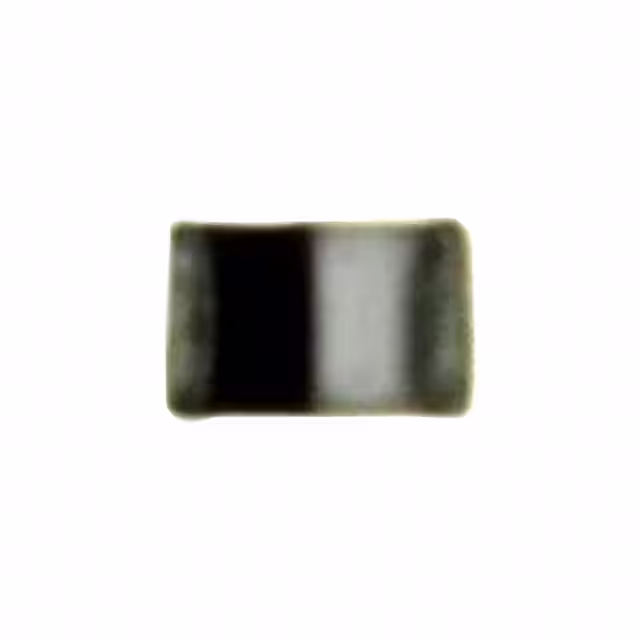

AQ1051N5S-TFIXED IND 1.5NH 930MA 70MOHM SMD Taiyo Yuden |
0 |
|
规格书 |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.5 nH | ±0.3nH | 930 mA | - | Unshielded | 70mOhm Max | 8 @ 100MHz | 8GHz | - | -55°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|

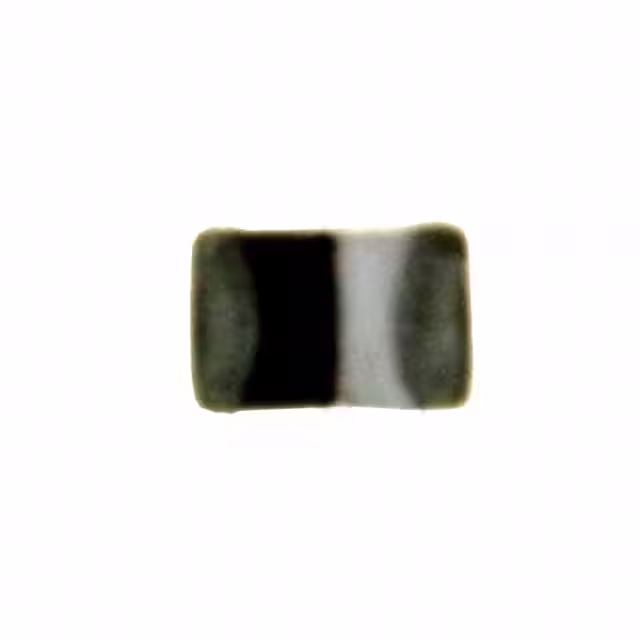

AQ1052N0S-TFIXED IND 2NH 870MA 80 MOHM SMD Taiyo Yuden |
0 |
|
规格书 |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2 nH | ±0.3nH | 870 mA | - | Unshielded | 80mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
AQ1052N2S-TFIXED IND 2.2NH 870MA 80MOHM SMD Taiyo Yuden |
0 |
|
规格书 |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 nH | ±0.3nH | 870 mA | - | Unshielded | 80mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|

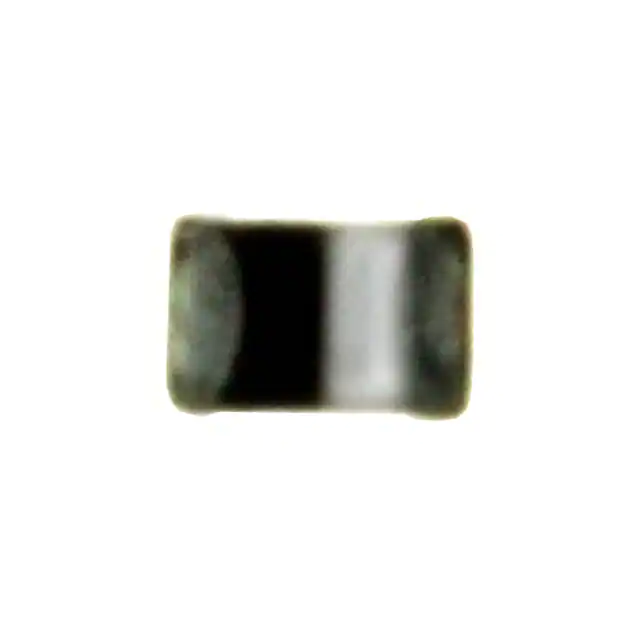

AQ1052N4S-TFIXED IND 2.4NH 820MA 90MOHM SMD Taiyo Yuden |
0 |
|
规格书 |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.4 nH | ±0.3nH | 820 mA | - | Unshielded | 90mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
AQ1052N7S-TFIXED IND 2.7NH 820MA 90MOHM SMD Taiyo Yuden |
0 |
|
规格书 |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.7 nH | ±0.3nH | 820 mA | - | Unshielded | 90mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
AQ1053N6S-TFIXED IND 3.6NH 650MA 140MOHM SM Taiyo Yuden |
0 |
|
规格书 |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.6 nH | ±0.3nH | 650 mA | - | Unshielded | 140mOhm Max | 8 @ 100MHz | 5GHz | - | -55°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|

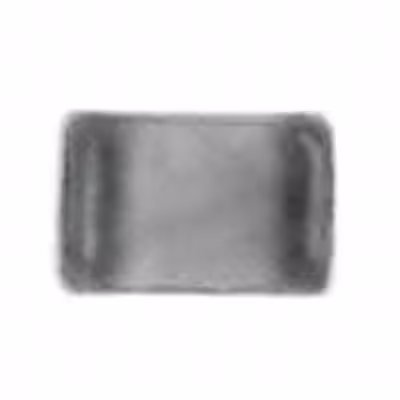

AQ1053N9S-TFIXED IND 3.9NH 630MA 150MOHM SM Taiyo Yuden |
0 |
|
规格书 |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.9 nH | ±0.3nH | 630 mA | - | Unshielded | 150mOhm Max | 8 @ 100MHz | 4GHz | - | -55°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|

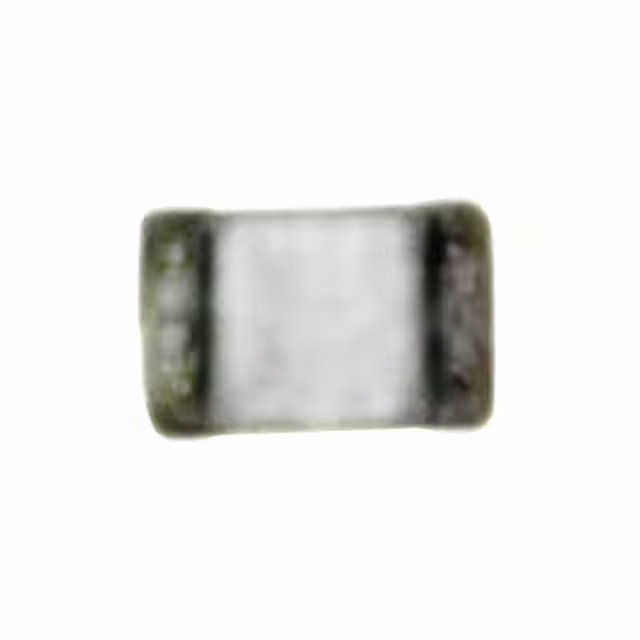

AQ1054N7S-TFIXED IND 4.7NH 590MA 170MOHM SM Taiyo Yuden |
0 |
|
规格书 |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 4.7 nH | ±0.3nH | 590 mA | - | Unshielded | 170mOhm Max | 8 @ 100MHz | 4GHz | - | -55°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
|
AQ1055N1S-TFIXED IND 5.1NH 560MA 190MOHM SM Taiyo Yuden |
0 |
|
规格书 |
AQ | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 5.1 nH | ±0.3nH | 560 mA | - | Unshielded | 190mOhm Max | 8 @ 100MHz | 4GHz | - | -55°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.50mm) |
