固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NRS6028T4R7MMGKVFIXED IND 4.7UH 3A 40.3 MOHM SMD Taiyo Yuden |
8,290 |
|
规格书 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3 A | 2.7A | Shielded | 40.3mOhm Max | - | 39MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

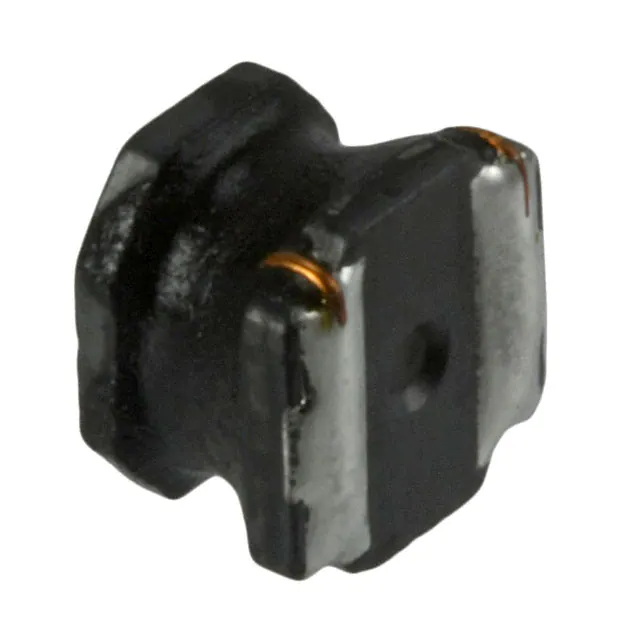

NR5040T4R7NFIXED IND 4.7UH 3.1A 37.7MOHM SM Taiyo Yuden |
75,329 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 3.1 A | 3.3A | Shielded | 37.7mOhm Max | - | 28MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
|
NR5040T3R3NFIXED IND 3.3UH 3.3A 35.1MOHM SM Taiyo Yuden |
51,344 |
|
- |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.3 A | 3.8A | Shielded | 35.1mOhm Max | - | 32MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
|
NR5040T100MFIXED IND 10UH 2.1A 72.8MOHM SMD Taiyo Yuden |
41,041 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 2.3A | Shielded | 72.8mOhm Max | - | 18MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|

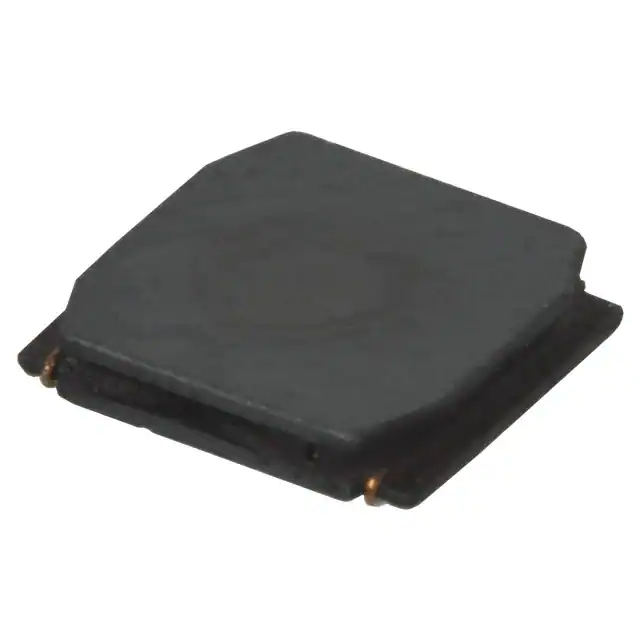

NR6020T2R2NFIXED IND 2.2UH 2.7A 40.8MOHM SM Taiyo Yuden |
102,465 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2.7 A | 3.2A | Shielded | 40.8mOhm Max | - | 73MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
NRS8040T101MJGKFIXED IND 100UH 1A 364 MOHM SMD Taiyo Yuden |
6,320 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1.1A | Shielded | 364mOhm Max | - | 6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

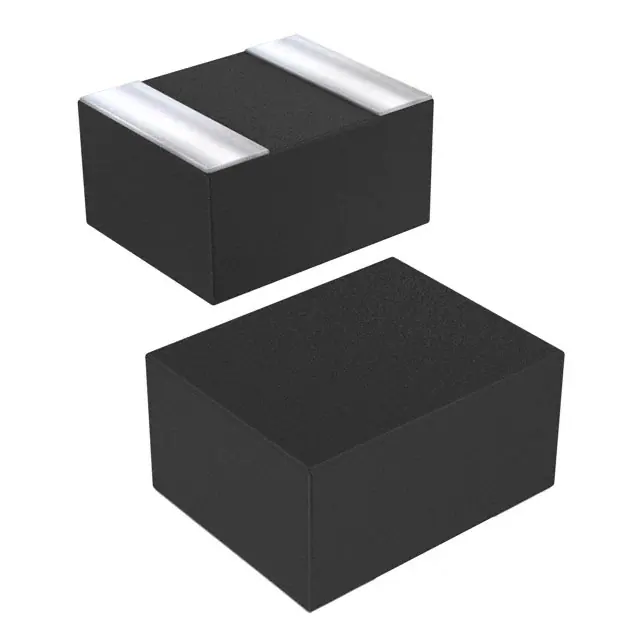

MEKK2016T1R0MFIXED IND 1UH 3.1A 60 MOHM SMD Taiyo Yuden |
3,939 |
|
规格书 |
MCOIL™, ME | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.1 A | 3.6A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
NRS8040T220MJGJFIXED IND 22UH 2.2A 85.8MOHM SMD Taiyo Yuden |
1,210 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.2 A | 2.4A | Shielded | 85.8mOhm Max | - | 13MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

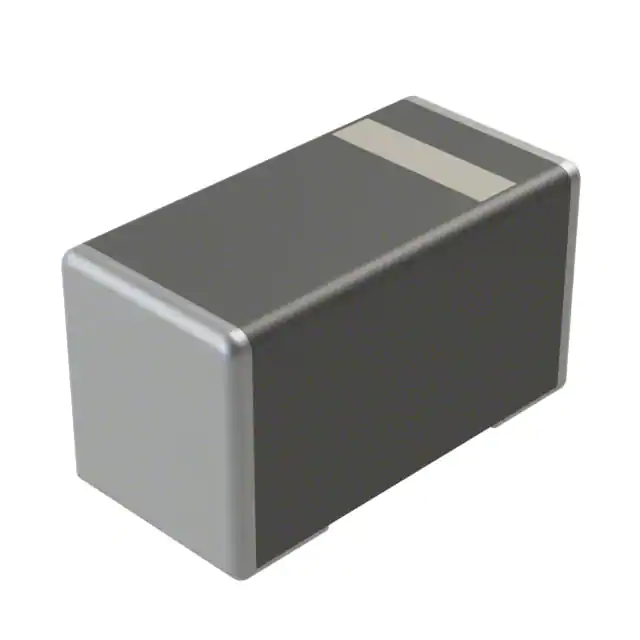

MCEE1005T1R0MHNFIXED IND 1UH 800MA 300 MOHM SMD Taiyo Yuden |
31,213 |
|
规格书 |
MCOIL™, MC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1 µH | ±20% | 800 mA | 1A | Shielded | 300mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
NRS5030T4R7MMGJVFIXED IND 4.7UH 2.6A 45.5MOHM SM Taiyo Yuden |
17,903 |
|
规格书 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.6 A | 3.1A | Shielded | 45.5mOhm Max | - | 31MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
