固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

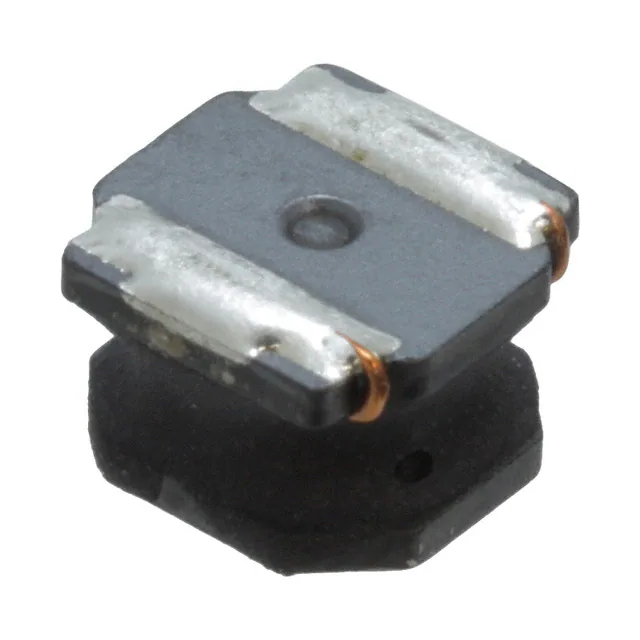

NRS6045T1R0NMGKFIXED IND 1UH 4.5A 18.2 MOHM SMD Taiyo Yuden |
17,776 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.5 A | 9.8A | Shielded | 18.2mOhm Max | - | 110MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
NRS6045T220MMGKFIXED IND 22UH 1.6A 139.1MOHM SM Taiyo Yuden |
12,866 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.6 A | 2A | Shielded | 139.1mOhm Max | - | 7MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

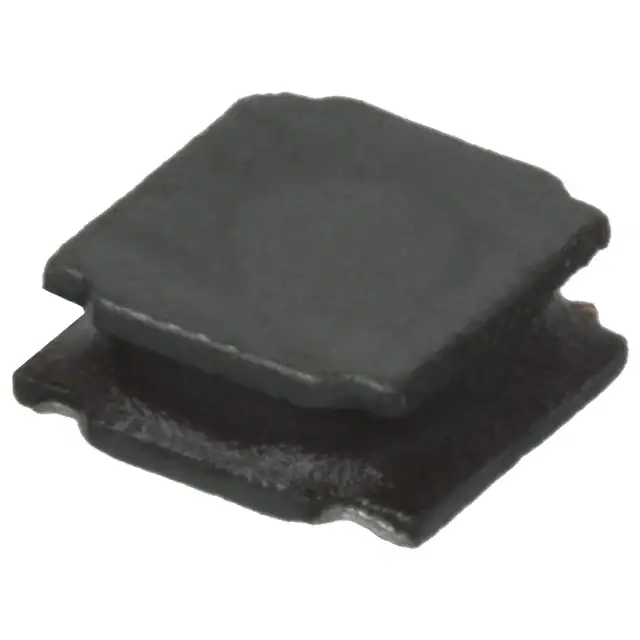

NR4018T100MFIXED IND 10UH 840MA 216MOHM SMD Taiyo Yuden |
179,112 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 840 mA | 1.2A | Shielded | 216mOhm Max | - | 24MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
NR4018T220MFIXED IND 22UH 590MA 432MOHM SMD Taiyo Yuden |
126,355 |
|
- |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 590 mA | 800mA | Shielded | 432mOhm Max | - | 16MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
NR4018T470MFIXED IND 47UH 420MA 780MOHM SMD Taiyo Yuden |
29,890 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 420 mA | 570mA | Shielded | 780mOhm Max | - | 10MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
NRS4018T100MDGJVFIXED IND 10UH 1.2A 180 MOHM SMD Taiyo Yuden |
26,705 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1.3A | Shielded | 180mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
NRS4018T4R7MDGJVFIXED IND 4.7UH 1.7A 84 MOHM SMD Taiyo Yuden |
14,760 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.7 A | 2A | Shielded | 84mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

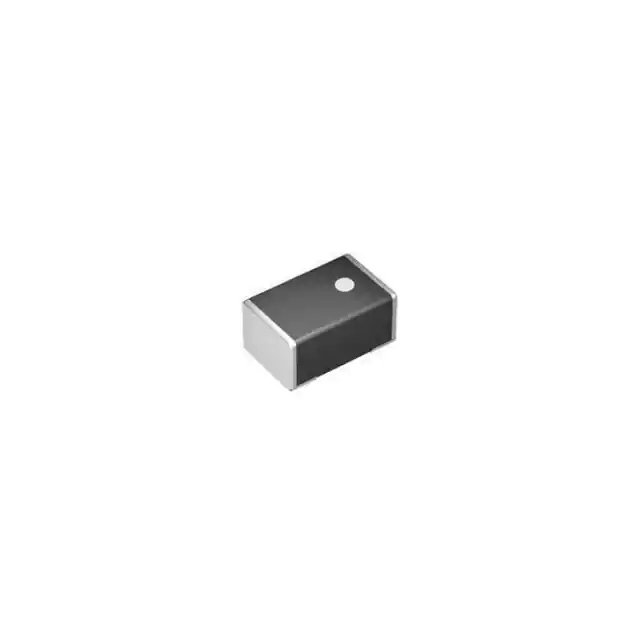

MCHK1608T2R2MKNFIXED IND 2.2UH 1.2A 292MOHM SMD Taiyo Yuden |
21,671 |
|
规格书 |
MCOIL™, MC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 2.2 µH | ±20% | 1.2 A | - | Shielded | 292mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
NR6045T100MFIXED IND 10UH 2.5A 61.1MOHM SMD Taiyo Yuden |
398,932 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.5 A | 3A | Shielded | 61.1mOhm Max | - | 12MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
NR6045T470MFIXED IND 47UH 1.1A 286 MOHM SMD Taiyo Yuden |
55,150 |
|
规格书 |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.1 A | 1.3A | Shielded | 286mOhm Max | - | 5MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
