固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

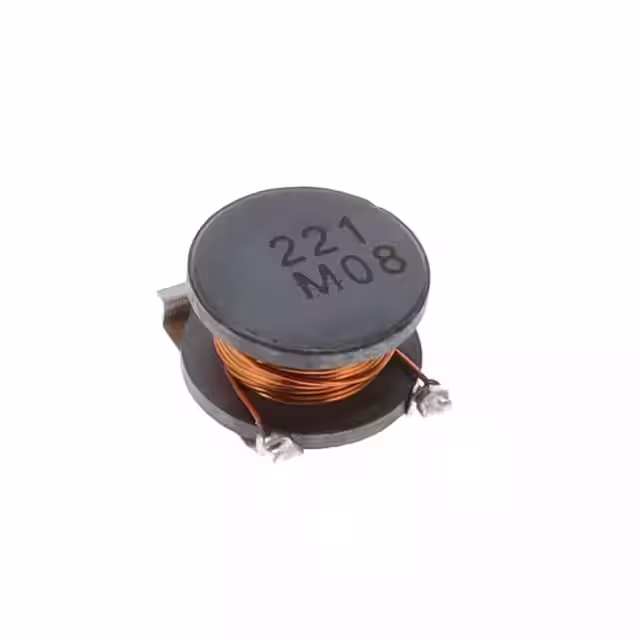

CDH80D48NP-221KCFIXED IND 220UH 650MA 750MOHM SM Sumida America Components Inc. |
500 |
|
规格书 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 650 mA | 680mA | Unshielded | 750mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|

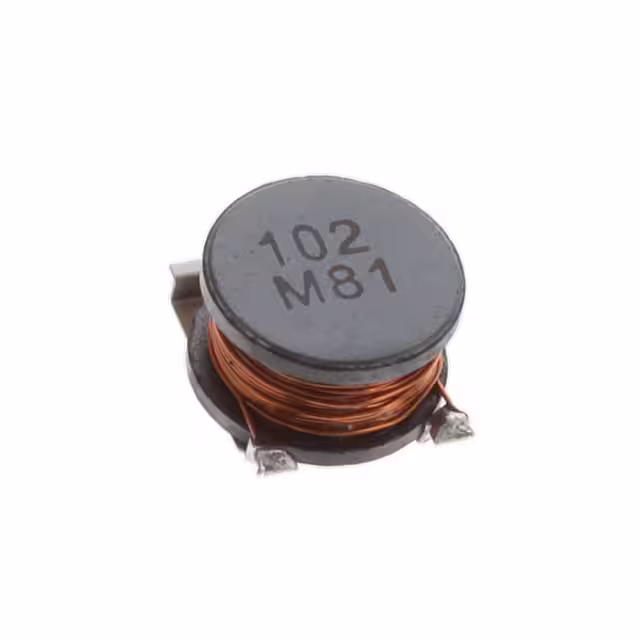

CDH80D48NP-102KCFIXED IND 1MH 310MA 2.94 OHM SMD Sumida America Components Inc. |
410 |
|
规格书 |
CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 310 mA | 320mA | Unshielded | 2.94Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|

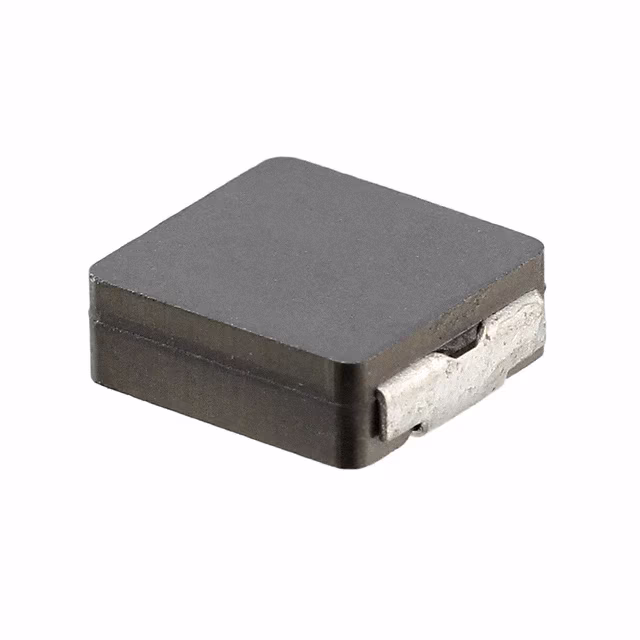

CDMC104NP-R56MFIXED IND 560NH 21A 1.48MOHM SMD Sumida America Components Inc. |
527 |
|
规格书 |
CDMC104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal Composite | 560 nH | ±20% | 21 A | 22A | Shielded | 1.48mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH12D77BT150NP-3R3NCFIXED IND 3.3UH 11.2A 9.62 MOHM Sumida America Components Inc. |
207 |
|
规格书 |
CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 11.2 A | 16.7A | Shielded | 9.62mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|

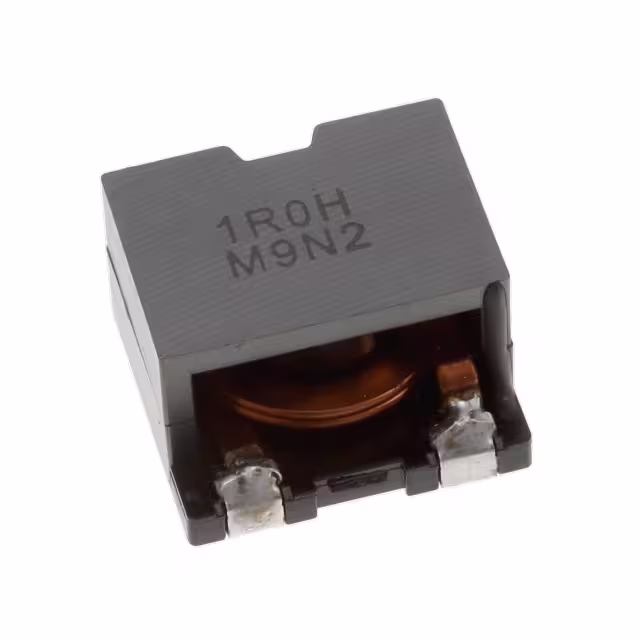

CDEP15D90T150NP-1R0MC-100FIXED IND 1UH 24.5A 1.75MOHM SMD Sumida America Components Inc. |
149 |
|
规格书 |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 24.5 A | 51.6A | Shielded | 1.75mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|

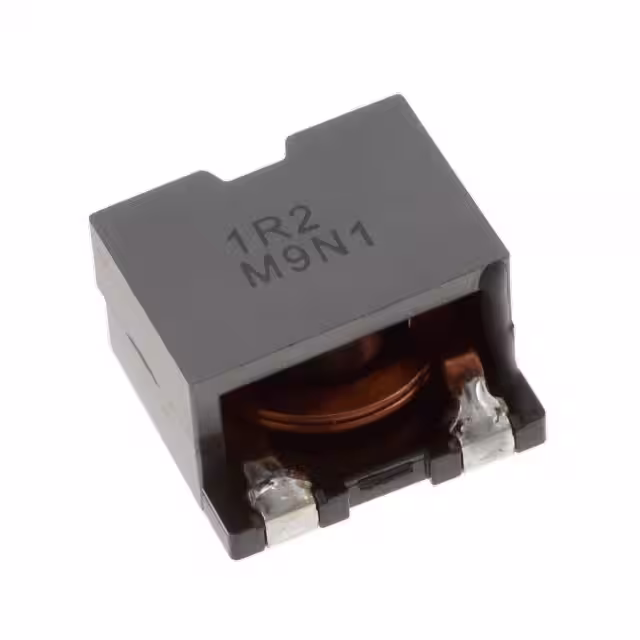

CDEP15D90T150NP-1R2MC-125FIXED IND 1.2UH 24.5A 1.75 MOHM Sumida America Components Inc. |
181 |
|
规格书 |
CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 24.5 A | 41.9A | Shielded | 1.75mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
CDMT40D20HF-R47NCFIXED IND 470NH 6.8A 8.3MOHM SMD Sumida America Components Inc. |
1,157 |
|
规格书 |
CDMT40D20 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±30% | 6.8 A | 11.4A | Shielded | 8.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.163" L x 0.163" W (4.15mm x 4.15mm) | 0.083" (2.10mm) |
|
CDRH70D45BT150NP-331MCFIXED IND 330UH 670MA 920MOHM SM Sumida America Components Inc. |
693 |
|
规格书 |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 670 mA | 510mA | Shielded | 920mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
|
|
CDRH70D45BT150NP-100MCFIXED IND 10UH 3.8A 33 MOHM SMD Sumida America Components Inc. |
1,000 |
|
规格书 |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 3.8 A | 3A | Shielded | 33mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
|
|
CDRH70D45BT150NP-221MCFIXED IND 220UH 910MA 550MOHM SM Sumida America Components Inc. |
640 |
|
规格书 |
CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 910 mA | 620mA | Shielded | 550mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
