固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

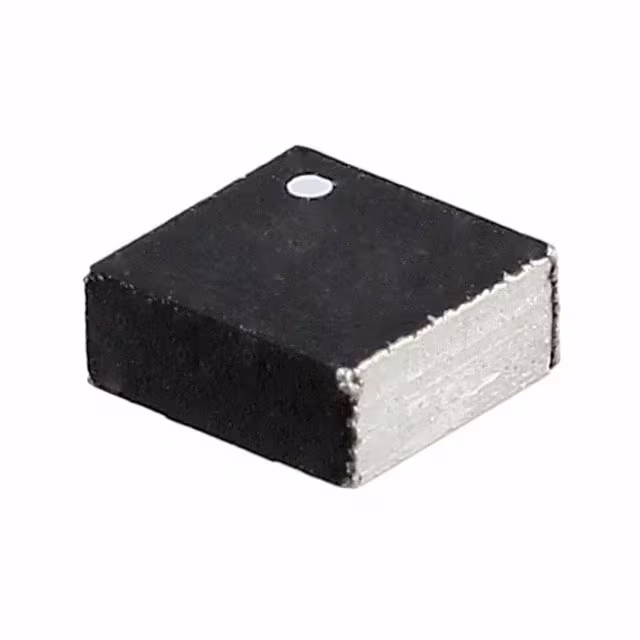

0420CDMCDS-3R3MCFIXED IND 3.3UH 3.5A 49 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±20% | 3.5 A | 4.1A | Shielded | 49mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-R22MCFIXED IND 220NH 10A 5.3 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 nH | ±20% | 10 A | 15A | Shielded | 5.3mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-220MCFIXED IND 22UH 1.5A 316 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 1.5 A | 1.6A | Shielded | 316mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-4R7MCFIXED IND 4.7UH 3.1A 67 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 3.1 A | 3.4A | Shielded | 67mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-1R5MCFIXED IND 1.5UH 5.1A 23 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±20% | 5.1 A | 5.8A | Shielded | 23mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-100MCFIXED IND 10UH 2.1A 148 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 2.1 A | 2.3A | Shielded | 148mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
CDR63BNP-100MCFIXED IND 10UH 1A 140 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR63 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 10 µH | ±20% | 1 A | - | Shielded | 140mOhm Max | - | 35.3MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|
|
CDR63BNP-220MCFIXED IND 22UH 760MA 320MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR63 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 22 µH | ±20% | 760 mA | - | Shielded | 320mOhm Max | - | 23.1MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|
|
CDR63BNP-680LCFIXED IND 68UH 420MA 820MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR63 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 68 µH | ±15% | 420 mA | - | Shielded | 820mOhm Max | - | 12.1MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|
CDRH5D14HPNP-100NCFIXED IND 10UH 1.3A 148 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDRH5D14/HP | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 10 µH | ±30% | 1.3 A | 1.1A | Shielded | 148mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.228" W (6.10mm x 5.80mm) | 0.059" (1.50mm) |
