固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH127/LD-821MCFIXED IND 820UH 750MA 1.24OHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 820 µH | ±20% | 750 mA | - | Shielded | 1.24Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

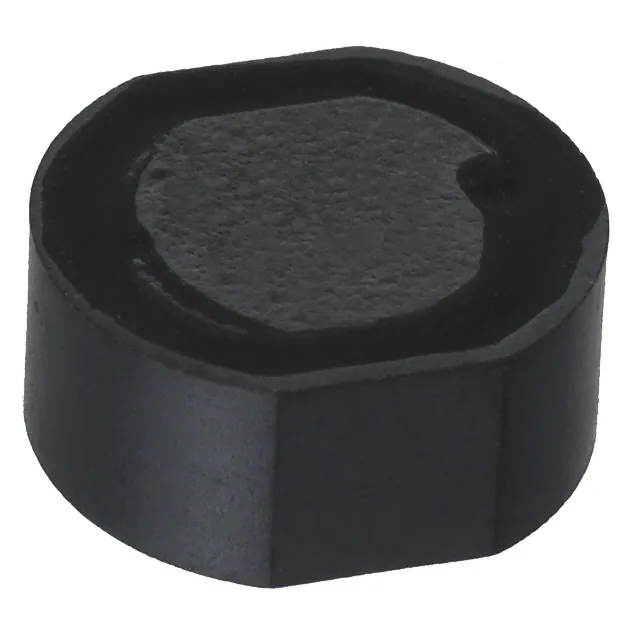

CDR105NP-120MCFIXED IND 12UH 2.31A 60 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR105 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 12 µH | -15%, +20% | 2.31 A | - | Shielded | 60mOhm Max | - | 27MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
|
CDR105NP-331MCFIXED IND 330UH 440MA 1.03OHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDR105 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 330 µH | -15%, +20% | 440 mA | - | Shielded | 1.03Ohm Max | - | 4.2MHz | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|

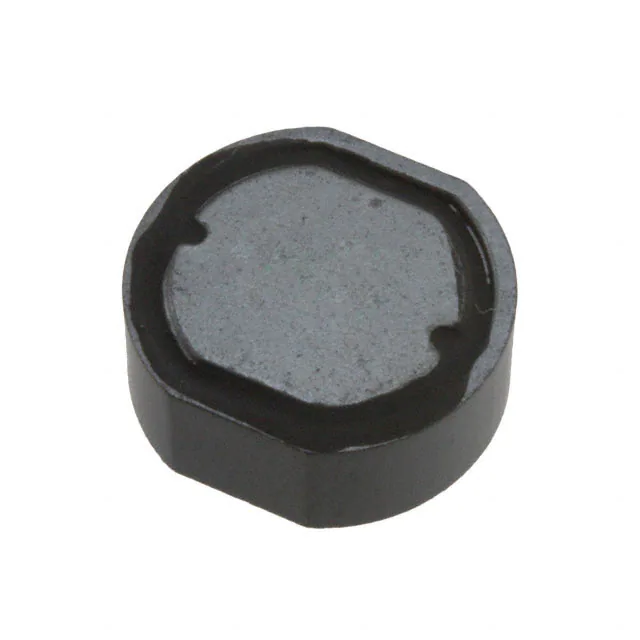

CDR125NP-121MCFIXED IND 120UH 950MA 280MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 120 µH | -15%, +20% | 950 mA | - | Shielded | 280mOhm Max | - | 6.34MHz | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125NP-221MCFIXED IND 220UH 700MA 520MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 220 µH | -15%, +20% | 700 mA | - | Shielded | 520mOhm Max | - | 4.51MHz | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125NP-331MCFIXED IND 330UH 570MA 800MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 330 µH | -15%, +20% | 570 mA | - | Shielded | 800mOhm Max | - | 3.9MHz | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125NP-470MCFIXED IND 47UH 1.5A 120 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 47 µH | -15%, +20% | 1.5 A | - | Shielded | 120mOhm Max | - | 10.4MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125NP-471MCFIXED IND 470UH 480MA 1.2OHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 470 µH | -15%, +20% | 480 mA | - | Shielded | 1.2Ohm Max | - | 3.25MHz | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125NP-680MCFIXED IND 68UH 1.26A 170MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 68 µH | -15%, +20% | 1.26 A | - | Shielded | 170mOhm Max | - | 8.5MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
CEP125NP-0R3NC-UDFIXED IND 350NH 18.5A 1.8MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 350 nH | ±30% | 18.5 A | 35A | Shielded | 1.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
