固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

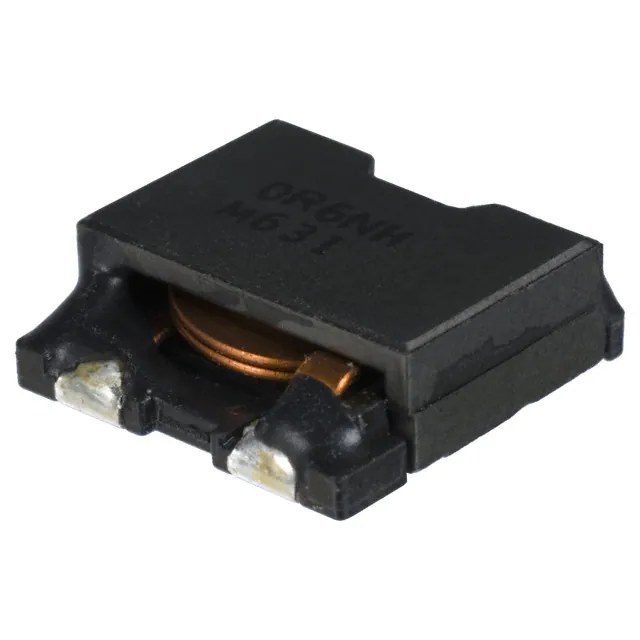

CDEP134-3R6MCFIXED IND 3.6UH 8A 10.8 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.6 µH | ±20% | 8 A | 10.9A | Shielded | 10.8mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
CDEP134-4R8MCFIXED IND 4.8UH 7.5A 12 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.8 µH | ±20% | 7.5 A | 9.3A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-6R4MCFIXED IND 6.4UH 7A 16.3 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.4 µH | ±20% | 7 A | 8A | Shielded | 16.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-8R0MCFIXED IND 8UH 6.5A 18.4 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 8 µH | ±20% | 6.5 A | 7.2A | Shielded | 18.4mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-1R8MC-HFIXED IND 1.8UH 10.5A 6.6MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.8 µH | ±20% | 10.5 A | 17.6A | Shielded | 6.6mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-2R7MC-HFIXED IND 2.7UH 8A 10.8 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±20% | 8 A | 14.7A | Shielded | 10.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-3R6MC-HFIXED IND 3.6UH 7.5A 12 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.6 µH | ±20% | 7.5 A | 12.5A | Shielded | 12mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-4R8MC-HFIXED IND 4.8UH 7A 16.3 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.8 µH | ±20% | 7 A | 11A | Shielded | 16.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134-6R0MC-HFIXED IND 6UH 6.5A 18.4 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6 µH | ±20% | 6.5 A | 9.6A | Shielded | 18.4mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|

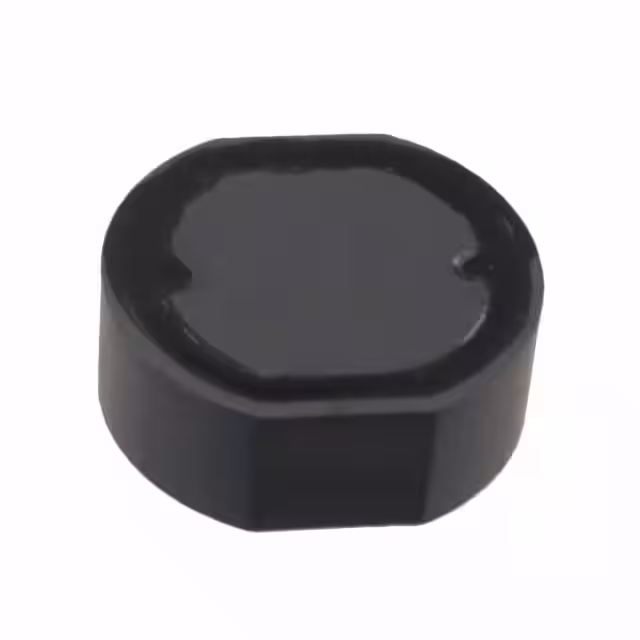

CDR125-100MCFIXED IND 10UH 2.65A 50 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 10 µH | ±20% | 2.65 A | - | Shielded | 50mOhm Max | - | 24.2MHz | - | -25°C ~ 70°C | 2.52 MHz | - | Surface Mount | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
