固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDEP134-0R3NC-HFIXED IND 300NH 18.5A 1.9MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 300 nH | ±30% | 18.5 A | 35A | Shielded | 1.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134NP-0R6NC-HFIXED IND 660NH 17A 2.5 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 660 nH | ±30% | 17 A | 29A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|
|
CDEP134NP-1R6MCFIXED IND 1.6UH 15A 3.7 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.6 µH | ±20% | 15 A | 16A | Shielded | 3.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.197" (5.00mm) |
|

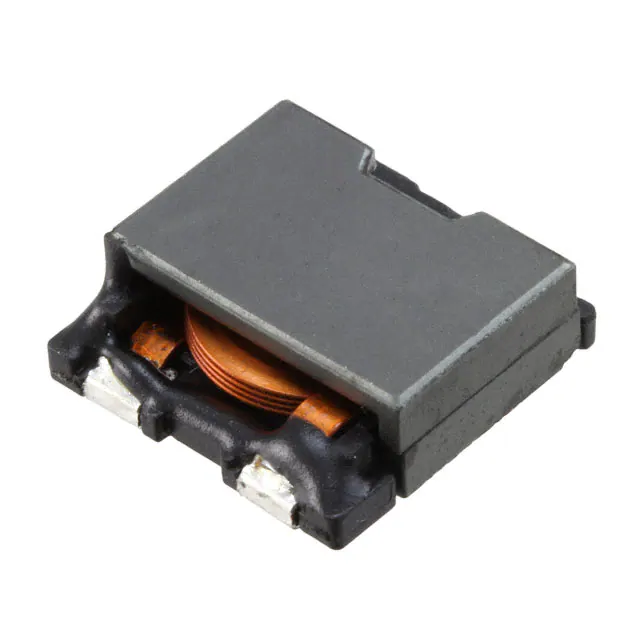

CDEP134NP-2R5MCFIXED IND 2.5UH 10.5A 6.6MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CDEP134 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 10.5 A | 12.8A | Shielded | 6.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.531" W (13.50mm x 13.50mm) | 0.193" (4.90mm) |
|
CEP125NP-4R3MC-UFIXED IND 4.3UH 8.2A 11.4MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.3 µH | ±20% | 8.2 A | 11A | Shielded | 11.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
CDEP145NP-0R5MC-140FIXED IND 560NH 23A 1.7 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP145 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 560 nH | ±20% | 23 A | 36A | Shielded | 1.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.236" (6.00mm) |
|
|
CDEP145NP-0R6MC-170FIXED IND 680NH 23A 1.7 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP145 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 nH | ±20% | 23 A | 30A | Shielded | 1.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.236" (6.00mm) |
|
|
CDEP145NP-1R2MC-140FIXED IND 1.2UH 19.5A 3 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP145 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.2 µH | ±20% | 19.5 A | 25A | Shielded | 3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.236" (6.00mm) |
|
|
CDEP145NP-2R2MC-140FIXED IND 2.2UH 15A 4.6 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP145 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 15 A | 19.2A | Shielded | 4.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.236" (6.00mm) |
|
|
CDEP145NP-2R7MC-170FIXED IND 2.7UH 15A 4.6 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDEP145 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±20% | 15 A | 15.2A | Shielded | 4.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.236" (6.00mm) |
