上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH169RBNP-121MCINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 2.7 A | 3.2A | Shielded | 107.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
|
CDRH169RBNP-561MCINDUCTOR Sumida America Components Inc. |
0 |
|
规格书 |
CDRH169RB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 1.05 A | 1.5A | Shielded | 460mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.630" L x 0.630" W (16.00mm x 16.00mm) | 0.394" (10.00mm) |
|
CDPH45D16FHF-100MCFIXED IND 10UH 1.45A 161MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDPH | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 1.45 A | 1.3A | Shielded | 161mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|

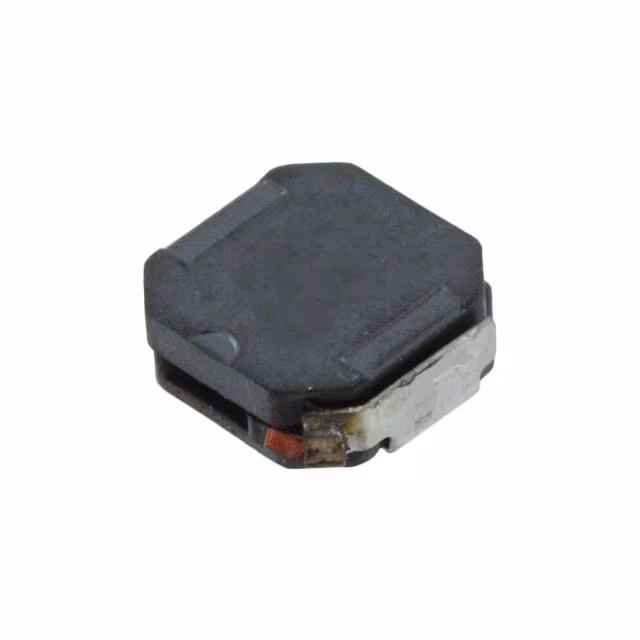

CDPH45D16FHF-4R3MCFIXED IND 4.3UH 2A 85 MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDPH | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.3 µH | ±20% | 2 A | 2A | Shielded | 85mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | 0.055" (1.40mm) |
|
CDR74BNP-220MCFIXED IND 22UH 1.12A 130MOHM SMD Sumida America Components Inc. |
0 |
|
规格书 |
CDR74B | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 22 µH | ±20% | 1.12 A | - | Shielded | 130mOhm Max | - | - | - | -25°C ~ 80°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.193" (4.90mm) |
|
CEP125NP-0R3NC-UFIXED IND 350NH 18.5A 1.8MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 350 nH | ±30% | 18.5 A | 35A | Shielded | 1.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
CEP125NP-0R8NC-UFIXED IND 800NH 16.5A 2.5MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 800 nH | ±30% | 16.5 A | 25.7A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
CEP125NP-0R8NC-UDFIXED IND 800NH 16.5A 2.5MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 800 nH | ±30% | 16.5 A | 25.7A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
CEP125NP-1R5MCFIXED IND 1.5UH 16.5A 2.5MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 16.5 A | 14A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
CEP125NP-2R2MC-UFIXED IND 2.2UH 12.5A 5.4MOHM SM Sumida America Components Inc. |
0 |
|
规格书 |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 12.5 A | 14.8A | Shielded | 5.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
