固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

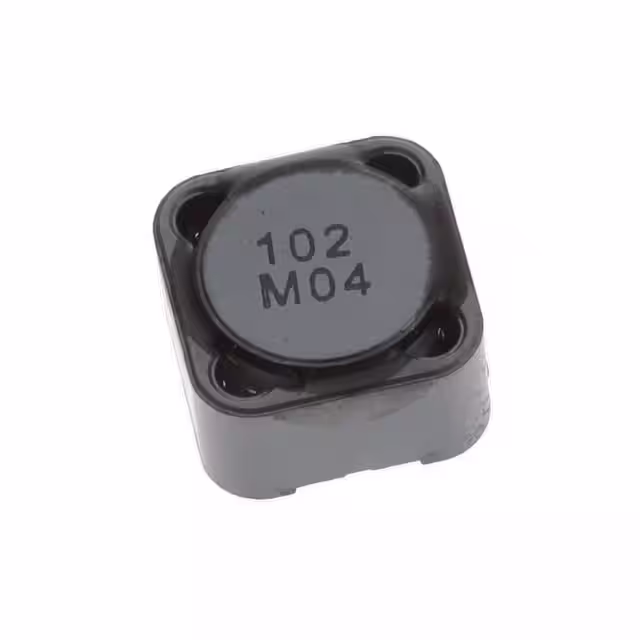

CDRH127L125NP-102MCFIXED IND 1MH 640MA 1.495OHM SMD Sumida America Components Inc. |
497 |
|
规格书 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 1 mH | ±20% | 640 mA | 830mA | Shielded | 1.495Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CDRH127L125NP-4R7NCFIXED IND 4.7UH 7.8A 13MOHM SMD Sumida America Components Inc. |
497 |
|
规格书 |
CDRH127/L125 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core | Ferrite | 4.7 µH | ±30% | 7.8 A | 12.3A | Shielded | 13mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

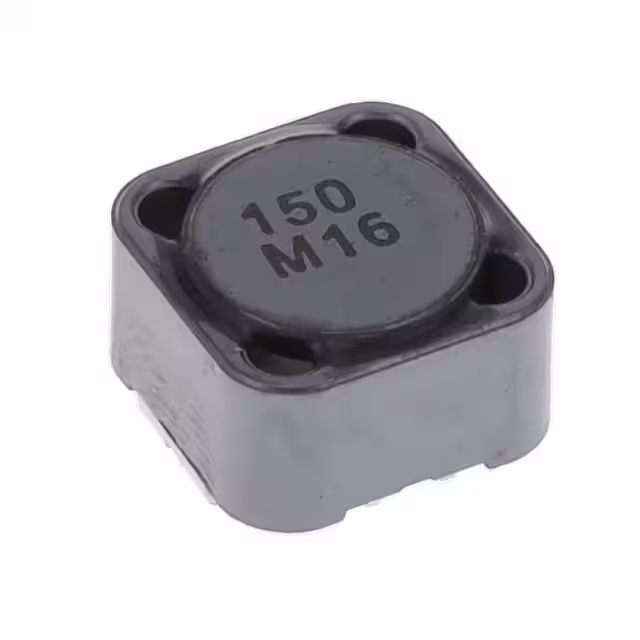

CDRH127L125NP-150MCFIXED IND 15UH 5.6A 26.2MOHM SMD Sumida America Components Inc. |
360 |
|
规格书 |
CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 15 µH | ±20% | 5.6 A | 6.4A | Shielded | 26.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CDRH125L125NP-6R8NCFIXED IND 6.8UH 5.9A 20MOHM SMD Sumida America Components Inc. |
300 |
|
规格书 |
CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 5.9 A | 6.2A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH3D16NP-1R5NCFIXED IND 1.5UH 1.55A 52MOHM SMD Sumida America Components Inc. |
1,168 |
|
规格书 |
CDRH3D16 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 1.55 A | - | Shielded | 52mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

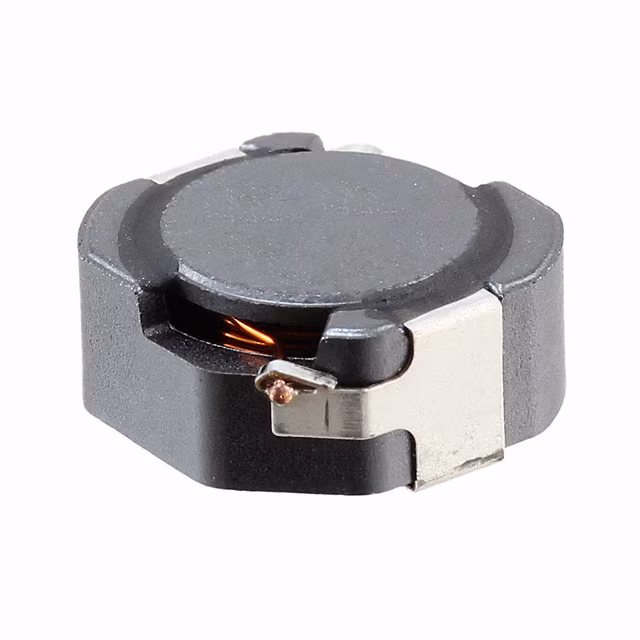

CDR6D28MNNP-470NCFIXED IND 47UH 720MA 458.8 MOHM Sumida America Components Inc. |
57,416 |
|
规格书 |
CDR6D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±25% | 720 mA | 1.05A | Shielded | 458.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.118" (3.00mm) |
|
CDRH125/LDNP-150MCFIXED IND 15UH 4A 35 MOHM SMD Sumida America Components Inc. |
8,434 |
|
- |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 4 A | - | Shielded | 35mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

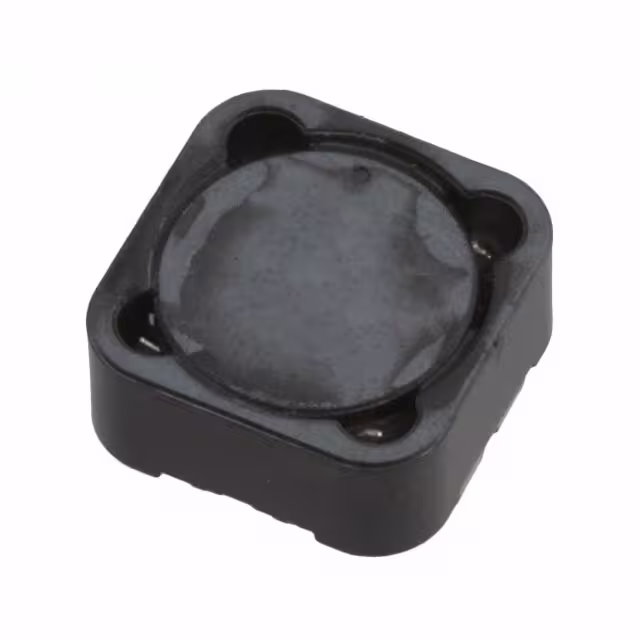

CDRH125/LDNP-470MCFIXED IND 47UH 2.3A 95 MOHM SMD Sumida America Components Inc. |
971 |
|
- |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.3 A | - | Shielded | 95mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

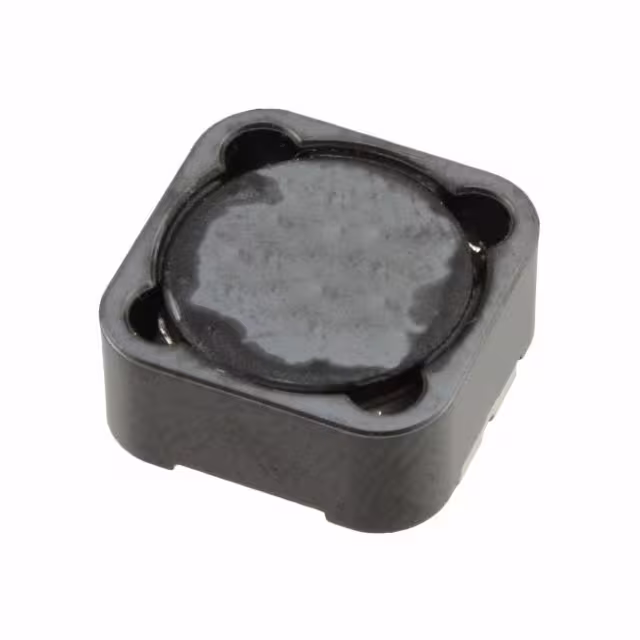

CDRH125/LDNP-330MCFIXED IND 33UH 2.6A 65 MOHM SMD Sumida America Components Inc. |
220 |
|
- |
CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 2.6 A | - | Shielded | 65mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
CDR6D28MNNP-7R7NCFIXED IND 7.7UH 2A 76.3 MOHM SMD Sumida America Components Inc. |
4,816 |
|
规格书 |
CDR6D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 7.7 µH | ±25% | 2 A | 2.85A | Shielded | 76.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.118" (3.00mm) |
