固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0830CDMCCDS-1R8MCFIXED IND 1.8UH 14A 8.5 MOHM SMD Sumida America Components Inc. |
2,008 |
|
规格书 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.8 µH | ±20% | 14 A | 12.2A | Shielded | 8.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
|
0830CDMCCDS-1R2MCFIXED IND 1.2UH 16A 6.7 MOHM SMD Sumida America Components Inc. |
987 |
|
规格书 |
0830CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.2 µH | ±20% | 16 A | 15.3A | Shielded | 6.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.118" (3.00mm) |
|
CDMC6D28NP-R47MCFIXED IND 470NH 14A 4.2 MOHM SMD Sumida America Components Inc. |
46,186 |
|
规格书 |
CDMC6D28 | Nonstandard | Tape & Reel (TR) | Last Time Buy | - | Metal Composite | 470 nH | ±20% | 14 A | 13.6A | Shielded | 4.2mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.285" L x 0.256" W (7.25mm x 6.50mm) | 0.118" (3.00mm) |
|
CDRH8D43NP-470NCFIXED IND 47UH 1.3A 150 MOHM SMD Sumida America Components Inc. |
20,756 |
|
规格书 |
CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±30% | 1.3 A | 1.8A | Shielded | 150mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
RCH110NP-681KFIXED IND 680UH 650MA 1.1 OHM TH Sumida America Components Inc. |
5,951 |
|
规格书 |
RCH-110 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 650 mA | - | Unshielded | 1.1Ohm Max | - | 2.1MHz | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
CDRH8D43NP-6R8NCFIXED IND 6.8UH 3.9A 25 MOHM SMD Sumida America Components Inc. |
2,736 |
|
规格书 |
CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 3.9 A | 4.4A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
RCH110NP-331KFIXED IND 330UH 930MA 520MOHM TH Sumida America Components Inc. |
1,092 |
|
规格书 |
RCH-110 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 930 mA | - | Unshielded | 520mOhm Max | - | 2.8MHz | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|

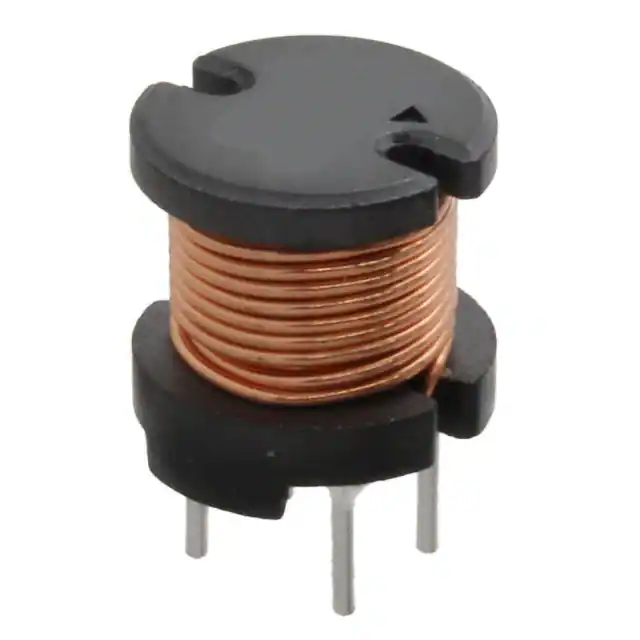

RCH110NP-680KFIXED IND 68UH 2.1A 120 MOHM TH Sumida America Components Inc. |
110 |
|
规格书 |
RCH-110 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 2.1 A | - | Unshielded | 120mOhm Max | - | 6.3MHz | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
|
|
CDRH8D43NP-101NCFIXED IND 100UH 800MA 360MOHM SM Sumida America Components Inc. |
1,954 |
|
规格书 |
CDRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±30% | 800 mA | 1.3A | Shielded | 360mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|

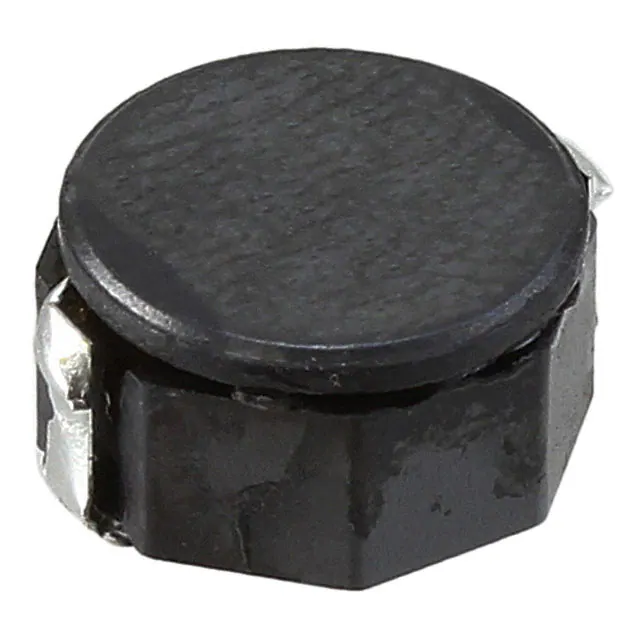

CDRH8D43HPNP-150NCFIXED IND 15UH 2A 75 MOHM SMD Sumida America Components Inc. |
4,873 |
|
规格书 |
CDRH8D43/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 2 A | 3.7A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.185" (4.70mm) |
