固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

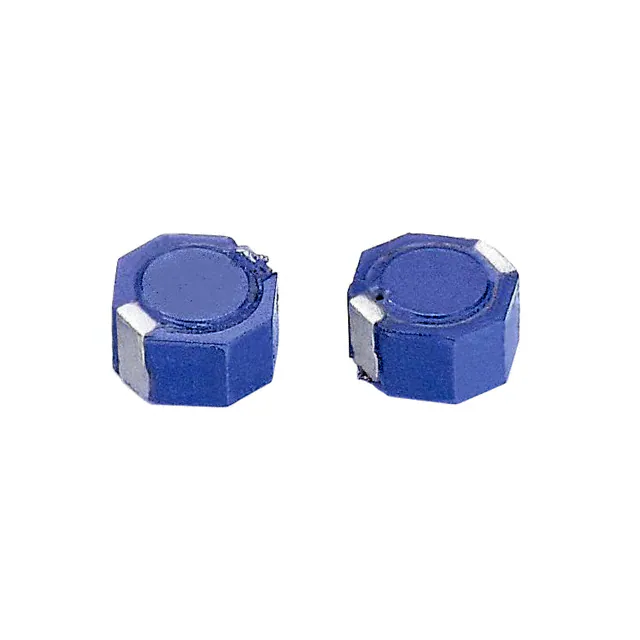

SC53LC-4R7FIXED IND 4.7UH 2.8A 60 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC53LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 2.8 A | 1.87A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.118" (3.00mm) |
|
|
SC53LC-100FIXED IND 10UH 2A 105 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC53LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2 A | 1.33A | Shielded | 105mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.118" (3.00mm) |
|
|
SC53LC-150FIXED IND 15UH 1.6A 126 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC53LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.6 A | 1.05A | Shielded | 126mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.118" (3.00mm) |
|
|
SC53LC-220FIXED IND 22UH 1.28A 190MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC53LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.28 A | 860mA | Shielded | 190mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.118" (3.00mm) |
|
|
SC53LC-470FIXED IND 47UH 870MA 415MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC53LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 870 mA | 620mA | Shielded | 415mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.118" (3.00mm) |
|
|
SC53LC-101FIXED IND 100UH 580MA 860MOHM SM Signal Transformer |
0 |
|
规格书 |
SC53LC | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 580 mA | 430mA | Shielded | 860mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.118" (3.00mm) |
|
SCRH127-3R5FIXED IND 3.5UH 9.2A 13.5MOHM SM Signal Transformer |
0 |
|
规格书 |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.5 µH | ±30% | 9.2 A | 7.5A | Shielded | 13.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-4R7FIXED IND 4.7UH 7.8A 15.8MOHM SM Signal Transformer |
0 |
|
规格书 |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±30% | 7.8 A | 6.8A | Shielded | 15.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-6R1FIXED IND 6.1UH 5.8A 17.6MOHM SM Signal Transformer |
0 |
|
规格书 |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.1 µH | ±30% | 5.8 A | 6.6A | Shielded | 17.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SCRH127-100FIXED IND 10UH 5.67A 21.6MOHM SM Signal Transformer |
0 |
|
规格书 |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 5.67 A | 5.4A | Shielded | 21.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
