固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

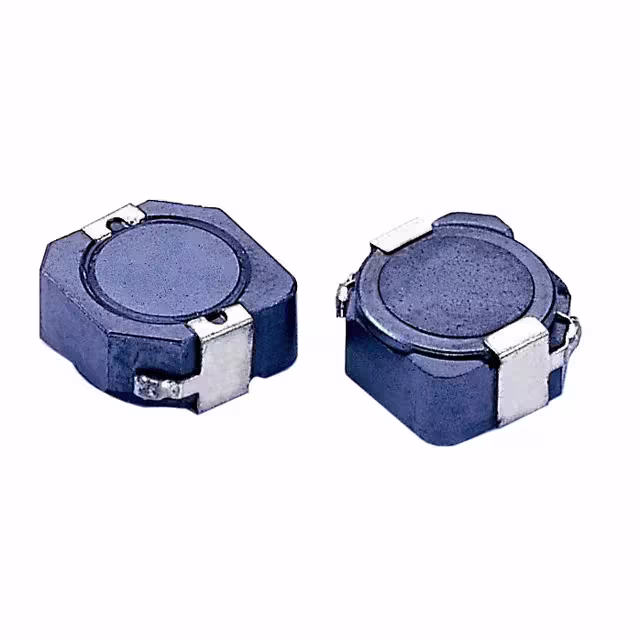

SCRH105R-100FIXED IND 10UH 4.5A 26 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 4.5 A | 3.45A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
SCRH105R-150FIXED IND 15UH 4A 41 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±30% | 4 A | 2.83A | Shielded | 41mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
SCRH105R-220FIXED IND 22UH 3.4A 61 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | 3.4 A | 2.44A | Shielded | 61mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
SCRH105R-330FIXED IND 33UH 2.7A 84 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±30% | 2.7 A | 1.88A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
SCRH105R-560FIXED IND 56UH 1.9A 149 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±30% | 1.9 A | 1.39A | Shielded | 149mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
SCRH105R-680FIXED IND 68UH 1.65A 201MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±30% | 1.65 A | 1.36A | Shielded | 201mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
SCRH105R-101FIXED IND 100UH 1.42A 253MOHM SM Signal Transformer |
0 |
|
规格书 |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | 1.42 A | 1.09A | Shielded | 253mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
SCRH105R-151FIXED IND 150UH 1.27A 370MOHM SM Signal Transformer |
0 |
|
规格书 |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±30% | 1.27 A | 910mA | Shielded | 370mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
|
SCRH105R-221FIXED IND 220UH 1.08A 500MOHM SM Signal Transformer |
0 |
|
规格书 |
SCRH105R | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±30% | 1.08 A | 750mA | Shielded | 500mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.201" (5.10mm) |
|
SLPPI05-12-2R2MHI POWER IND 2.20UH 55.0 MOHM 5 Signal Transformer |
0 |
|
规格书 |
SLPPI05 | Nonstandard | Bulk | Active | Molded | - | 2.2 µH | ±20% | 3.5 A | 4.2A | Shielded | 66mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.047" (1.20mm) |
