固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

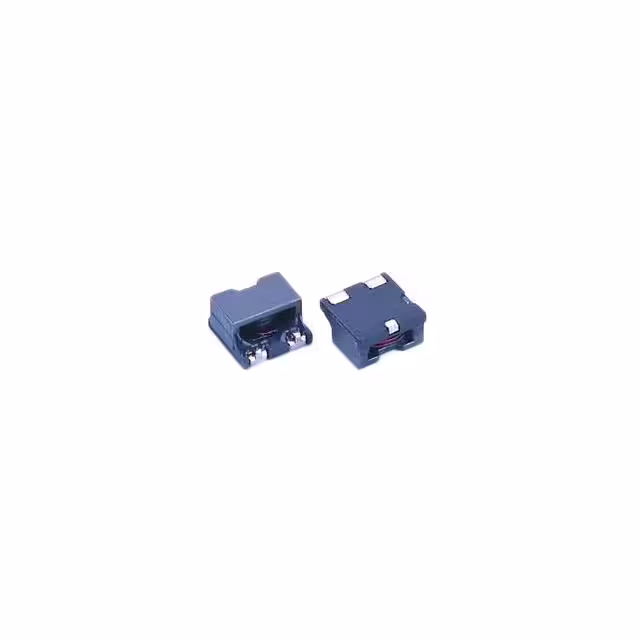

SCEP105L-R80FIXED IND 800NH 18A 3.2 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCEP105L | Nonstandard | Tape & Reel (TR) | Active | - | - | 800 nH | ±20% | 18 A | 16A | Shielded | 3.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|

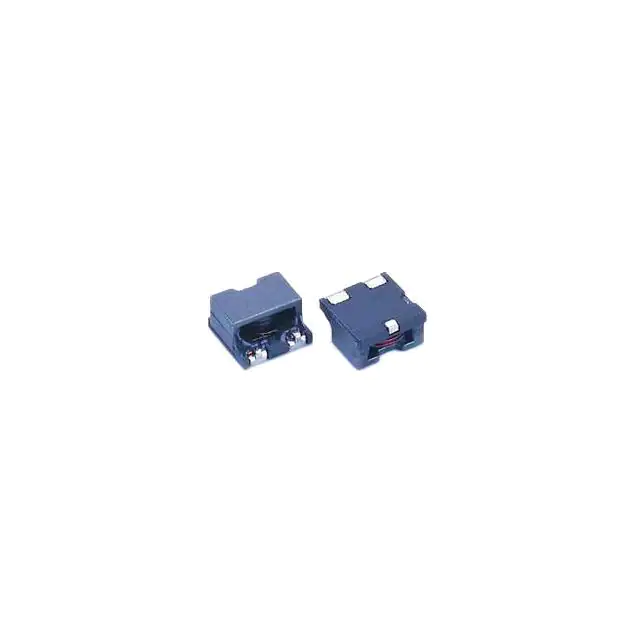

SCEP105S-1R3FIXED IND 1.3UH 13A 5.3 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCEP105S | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.3 µH | ±20% | 13 A | 16.8A | Shielded | 5.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|
SCEP105S-1R8FIXED IND 1.8UH 11.5A 8 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCEP105S | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.8 µH | ±20% | 11.5 A | 13.8A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|
SCEP105S-2R5FIXED IND 2.5UH 9A 10.5 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCEP105S | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.5 µH | ±20% | 9 A | 11.8A | Shielded | 10.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|
SCEP105S-3R2FIXED IND 3.2UH 8A 12.4 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCEP105S | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.2 µH | ±20% | 8 A | 10.5A | Shielded | 12.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|
SCEP105S-4R0FIXED IND 4UH 7.5A 18 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCEP105S | Nonstandard | Tape & Reel (TR) | Active | - | - | 4 µH | ±20% | 7.5 A | 9.3A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|
SCEP105S-5R0FIXED IND 5UH 6.65A 23.8MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCEP105S | Nonstandard | Tape & Reel (TR) | Active | - | - | 5 µH | ±20% | 6.65 A | 8.4A | Shielded | 23.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|
SCEP105S-R22FIXED IND 220NH 20A 2.6 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCEP105S | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±30% | 20 A | 40A | Shielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|
SCEP105S-R45FIXED IND 450NH 18A 3.2 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCEP105S | Nonstandard | Tape & Reel (TR) | Active | - | - | 450 nH | ±20% | 18 A | 26.4A | Shielded | 3.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
|
|
SCEP105S-R80FIXED IND 800NH 14A 4.1 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCEP105S | Nonstandard | Tape & Reel (TR) | Active | - | - | 800 nH | ±20% | 14 A | 20.8A | Shielded | 4.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.220" (5.60mm) |
