固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

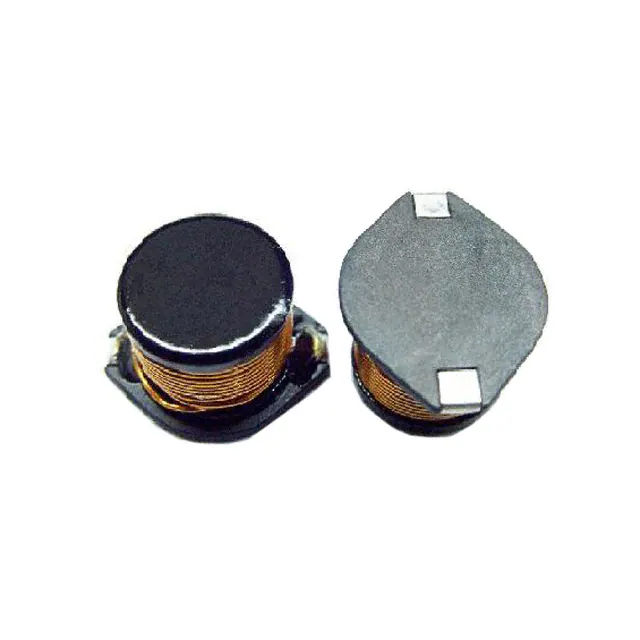

SC5040F-150FIXED IND 15UH 8A 23.5 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 8 A | 13A | Unshielded | 23.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
|
SC5040F-151FIXED IND 150UH 2.3A 216MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 2.3 A | 4A | Unshielded | 216mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
|
SC5040F-220FIXED IND 22UH 6.5A 34.2MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 6.5 A | 10.6A | Unshielded | 34.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
|
SC5040F-221FIXED IND 220UH 1.8A 310MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 1.8 A | 3.3A | Unshielded | 310mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
|
SC5040F-330FIXED IND 33UH 5A 51.2 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 5 A | 8.6A | Unshielded | 51.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
|
SC5040F-331FIXED IND 330UH 1.5A 450MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 1.5 A | 2.7A | Unshielded | 450mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
|
SC5040F-470FIXED IND 47UH 4A 71.4 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 4 A | 7A | Unshielded | 71.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
|
SC5040F-471FIXED IND 470UH 1.2A 600MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 1.2 A | 2.2A | Unshielded | 600mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
|
SC5040F-4R7FIXED IND 4.7UH 14A 8.5 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 14 A | 24A | Unshielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
|
SC5040F-5R6FIXED IND 5.6UH 12.5A 9.8MOHM SM Signal Transformer |
0 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 12.5 A | 20.3A | Unshielded | 9.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
