固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCIHP0724-R47MFIXED IND 470NH 13.5A 6.5MOHM SM Signal Transformer |
0 |
|
规格书 |
SCIHP0724 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 13.5 A | 21A | Shielded | 6.5mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.094" (2.40mm) |
|
|
SCIHP0724-8R2MFIXED IND 8.2UH 3A 120 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCIHP0724 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 3 A | 5A | Shielded | 120mOhm | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.094" (2.40mm) |
|
SC3316F-101FIXED IND 100UH 1.3A 280MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3316F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.3 A | 1.2A | Unshielded | 280mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.205" (5.21mm) |
|

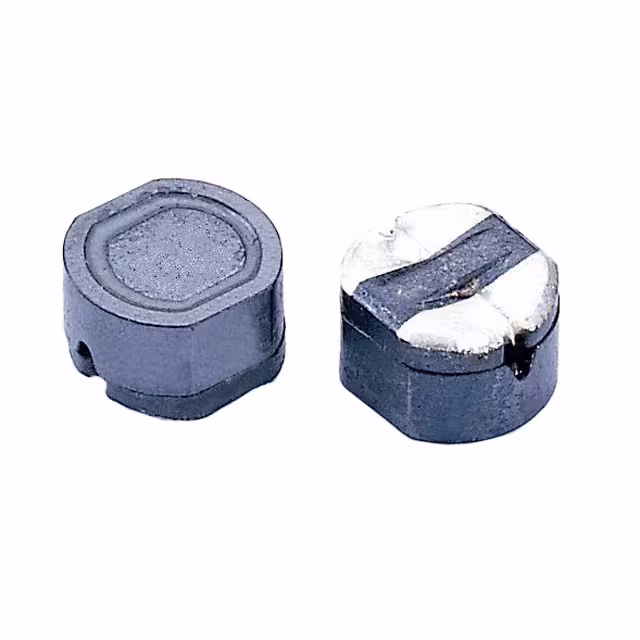

SCR74B-100FIXED IND 10UH 3.3A 70 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCR74B | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 3.3 A | 1.65A | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 kHz | - | Surface Mount | - | 0.327" L x 0.295" W (8.30mm x 7.50mm) | 0.197" (5.00mm) |
|
SLPPI03-10-R15MHI POWER IND 0.15UH 9.3MOHM 12. Signal Transformer |
0 |
|
规格书 |
SLPPI03 | Nonstandard | Bulk | Active | Molded | - | 150 nH | ±20% | 7 A | 10A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.039" (1.00mm) |
|

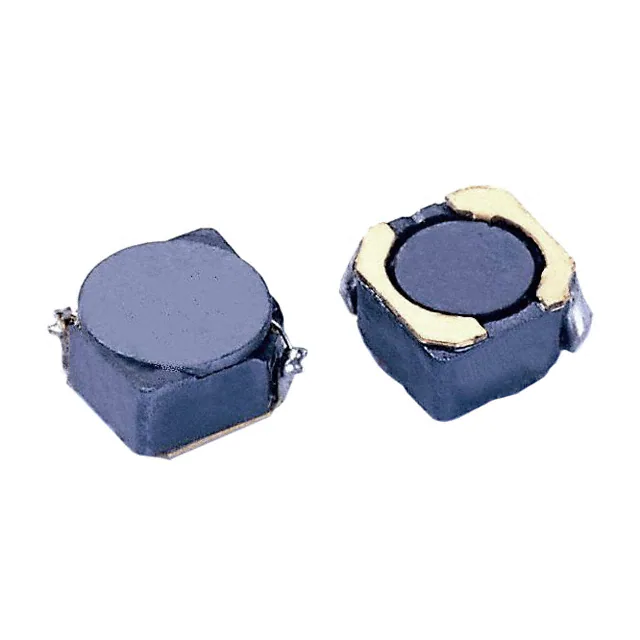

SCRH5D28-220FIXED IND 22UH 1.7A 122 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | 1.7 A | 860mA | Shielded | 122mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | 0.118" (3.00mm) |
|
SCRH6D28-101FIXED IND 100UH 540MA 535MOHM SM Signal Transformer |
0 |
|
规格书 |
SCRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | 540 mA | 540mA | Shielded | 535mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|

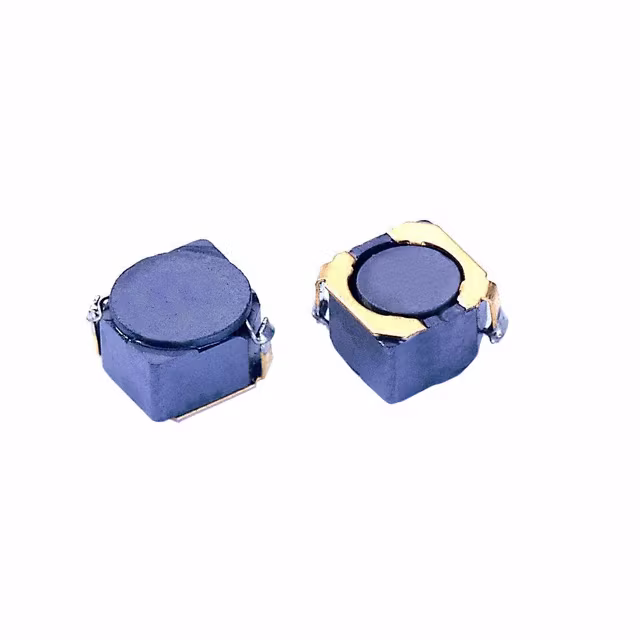

SCRH6D38-100FIXED IND 10UH 2A 38 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 2 A | 2A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.157" (4.00mm) |
|
SC5040F-100FIXED IND 10UH 9.5A 15.7MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 9.5 A | 16.7A | Unshielded | 15.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
|
|
SC5040F-101FIXED IND 100UH 2.8A 146MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC5040F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 2.8 A | 5A | Unshielded | 146mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.450" (11.43mm) |
