固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

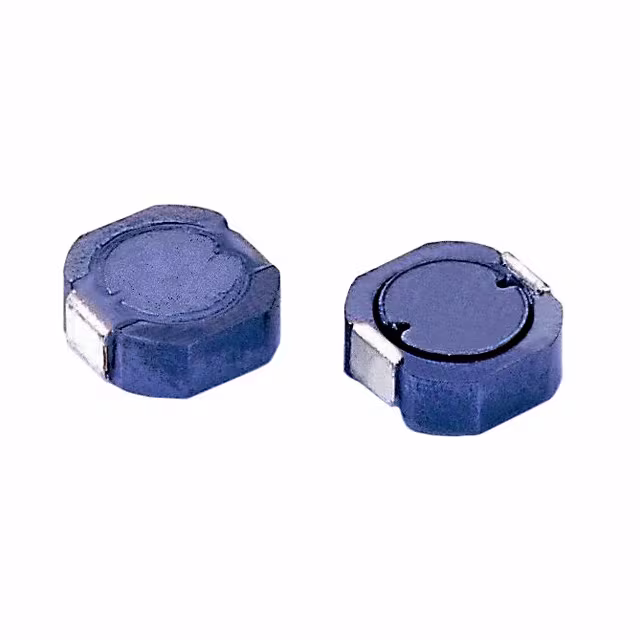

SC62CB-100FIXED IND 10UH 1.82A 80 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC62CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.82 A | 1.07A | Shielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.098" (2.50mm) |
|
|
SC62CB-101FIXED IND 100UH 580MA 813MOHM SM Signal Transformer |
0 |
|
规格书 |
SC62CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 580 mA | 330mA | Shielded | 813mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.098" (2.50mm) |
|
|
SC62CB-120FIXED IND 12UH 1.63A 94 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC62CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 1.63 A | 970mA | Shielded | 94mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.098" (2.50mm) |
|
|
SC62CB-150FIXED IND 15UH 1.46A 120MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC62CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.46 A | 870mA | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.098" (2.50mm) |
|
|
SC62CB-180FIXED IND 18UH 1.31A 140MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC62CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 1.31 A | 790mA | Shielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.098" (2.50mm) |
|
|
SC62CB-1R0FIXED IND 1UH 5A 16 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC62CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±30% | 5 A | 3.48A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.098" (2.50mm) |
|
|
SC62CB-1R5FIXED IND 1.5UH 4A 18 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC62CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 4 A | 2.83A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.098" (2.50mm) |
|
|
SC62CB-220FIXED IND 22UH 1.17A 188MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC62CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.17 A | 710mA | Shielded | 188mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.098" (2.50mm) |
|
|
SC62CB-270FIXED IND 27UH 1.05A 212MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC62CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 1.05 A | 640mA | Shielded | 212mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.098" (2.50mm) |
|
|
SC62CB-2R0FIXED IND 2UH 3.4A 21 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC62CB | Nonstandard | Tape & Reel (TR) | Active | - | - | 2 µH | ±30% | 3.4 A | 2.44A | Shielded | 21mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.244" W (6.30mm x 6.20mm) | 0.098" (2.50mm) |
