固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

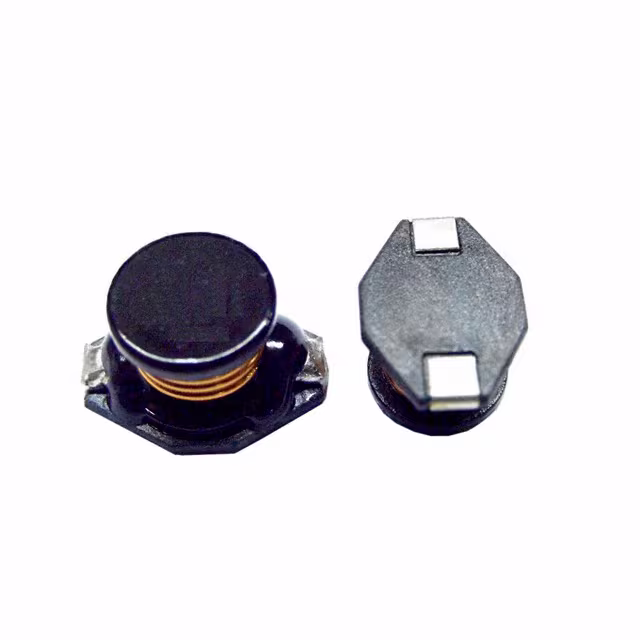

SC3326F-221FIXED IND 220UH 860MA 600MOHM SM Signal Transformer |
0 |
|
规格书 |
SC3326F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 860 mA | 1.6A | Unshielded | 600mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.315" (8.00mm) |
|
|
SC3326F-330FIXED IND 33UH 2.5A 100 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3326F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 2.5 A | 4.3A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.315" (8.00mm) |
|
|
SC3326F-331FIXED IND 330UH 700MA 880MOHM SM Signal Transformer |
0 |
|
规格书 |
SC3326F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 700 mA | 1.4A | Unshielded | 880mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.315" (8.00mm) |
|
|
SC3326F-3R3FIXED IND 3.3UH 8.3A 14 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3326F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 8.3 A | 10A | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.315" (8.00mm) |
|
|
SC3326F-470FIXED IND 47UH 2A 150 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3326F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2 A | 3.5A | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.315" (8.00mm) |
|
|
SC3326F-471FIXED IND 470UH 600MA 1.25OHM SM Signal Transformer |
0 |
|
规格书 |
SC3326F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 600 mA | 1.1A | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.315" (8.00mm) |
|
|
SC3326F-4R7FIXED IND 4.7UH 7.2A 18 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3326F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 7.2 A | 9.5A | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.315" (8.00mm) |
|
|
SC3326F-680FIXED IND 68UH 1.7A 200 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3326F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 1.7 A | 3A | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.315" (8.00mm) |
|
|
SC3326F-681FIXED IND 680UH 540MA 1.8OHM SMD Signal Transformer |
0 |
|
规格书 |
SC3326F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 540 mA | 900mA | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.315" (8.00mm) |
|
|
SC3326F-6R8FIXED IND 6.8UH 6A 23 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC3326F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 6 A | 9A | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.390" W (13.45mm x 9.90mm) | 0.315" (8.00mm) |
