固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLPPI03-02-6R8M-TRHI POWER IND 6.8UH 153.0 MOHM 3 Signal Transformer |
0 |
|
规格书 |
SLPPI03 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 1.2 A | 2.6A | Shielded | 184mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.079" (2.00mm) |
|
|
SLPPI03-10-100M-TRHI POWER IND 10.0UH 380.0 MOHM Signal Transformer |
0 |
|
规格书 |
SLPPI03 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 700 mA | 1.2A | Shielded | 430mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SLPPI03-02-2R2M-TRHI POWER IND 2.20UH 60.0 MOHM 4 Signal Transformer |
0 |
|
规格书 |
SLPPI03 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2.8 A | 4A | Shielded | 69mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.079" (2.00mm) |
|
|
SLPPI03-02-1R0M-TRHI POWER IND 1.00UH 25.0 MOHM 8 Signal Transformer |
0 |
|
规格书 |
SLPPI03 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 4 A | 6.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.134" L x 0.118" W (3.40mm x 3.00mm) | 0.079" (2.00mm) |
|
SC2220-470FIXED IND 47UH 760MA 630MOHM SMD Signal Transformer |
0 |
|
规格书 |
SC2220 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 760 mA | 800mA | Unshielded | 630mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.209" W (6.00mm x 5.30mm) | 0.197" (5.00mm) |
|

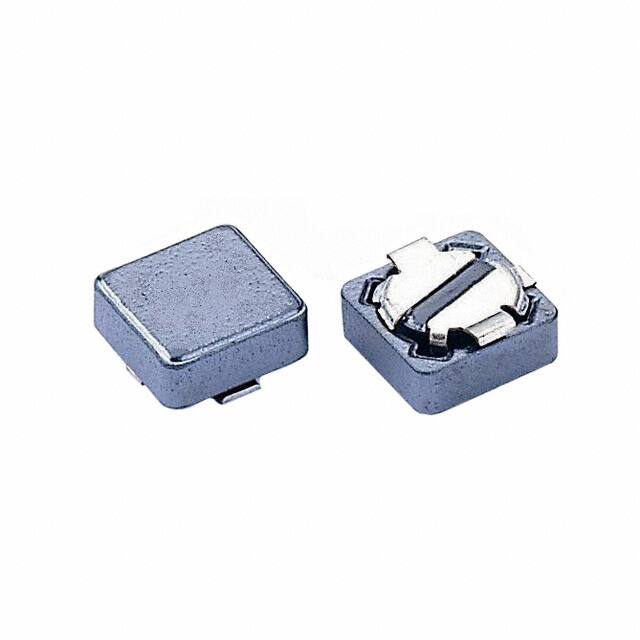

SCPH73-100FIXED IND 10UH 2A 90 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2 A | 1.4A | Shielded | 90mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
|
|
SCPH73-101FIXED IND 100UH 680MA 700MOHM SM Signal Transformer |
0 |
|
规格书 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 680 mA | 460mA | Shielded | 700mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
|
|
SCPH73-120FIXED IND 12UH 1.8A 100 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 1.8 A | 1.3A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
|
|
SCPH73-121FIXED IND 120UH 610MA 820MOHM SM Signal Transformer |
0 |
|
规格书 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 µH | ±20% | 610 mA | 420mA | Shielded | 820mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
|
|
SCPH73-150FIXED IND 15UH 1.62A 130MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCPH73 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.62 A | 1.2A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.142" (3.60mm) |
