固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

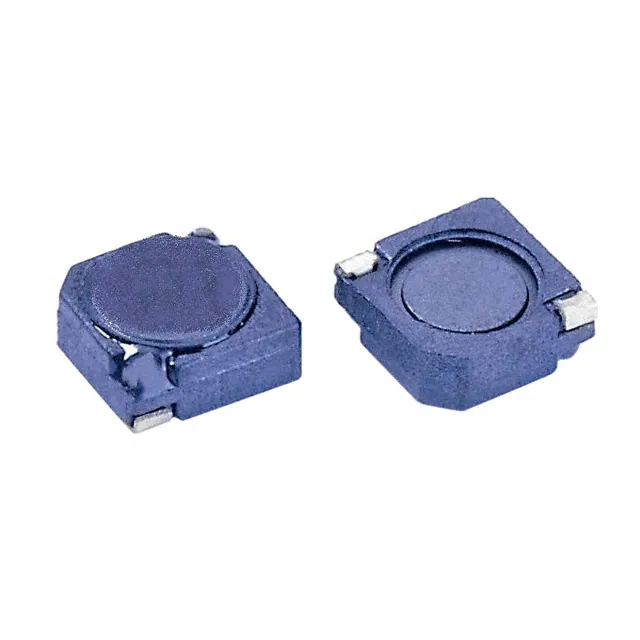

SCC5D23-471FIXED IND 470UH 210MA 4.78OHM SM Signal Transformer |
0 |
|
规格书 |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 470 µH | ±20% | 210 mA | 165mA | Shielded | 4.78Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-4R7FIXED IND 4.7UH 2.2A 62 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 4.7 µH | ±20% | 2.2 A | 1.6A | Shielded | 62mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-820FIXED IND 82UH 580MA 1 OHM SMD Signal Transformer |
0 |
|
规格书 |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 82 µH | ±20% | 580 mA | 350mA | Shielded | 1Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SCC5D23-8R2FIXED IND 8.2UH 1.75A 103MOHM SM Signal Transformer |
0 |
|
规格书 |
SCC5D23 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 8.2 µH | ±20% | 1.75 A | 1.12A | Shielded | 103mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.098" (2.50mm) |
|
F1A1-464615-390MFIXED IND 39UH 450MA 1200 MOHM Signal Transformer |
0 |
|
规格书 |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 39 µH | ±20% | 450 mA | 400mA | Shielded | 1.2kOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
|
|
F1A1-464615-3R3NFIXED IND 3.3UH 1.55A 150 MOHM Signal Transformer |
0 |
|
规格书 |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 3.3 µH | ±30% | 1.55 A | 1.6A | Shielded | 150Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
|
|
F1A1-464615-120MFIXED IND 12UH 850MA 356 MOHM Signal Transformer |
0 |
|
规格书 |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 12 µH | ±20% | 850 mA | 800mA | Shielded | 356Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
|
|
F1A1-464615-2R7NFIXED IND 2.7UH 1.6A 137 MOHM Signal Transformer |
0 |
|
规格书 |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 2.7 µH | ±30% | 1.6 A | 1.7A | Shielded | 137Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
|
|
F1A1-464615-180MFIXED IND 18UH 700MA 618 MOHM Signal Transformer |
0 |
|
规格书 |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 18 µH | ±20% | 700 mA | 650mA | Shielded | 618Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
|
|
F1A1-464615-1R0NFIXED IND 1.0UH 1.75A 81 MOHM Signal Transformer |
0 |
|
规格书 |
F1A1-464615 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 1 µH | ±30% | 1.75 A | 2.6A | Shielded | 81Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.059" (1.50mm) |
