固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

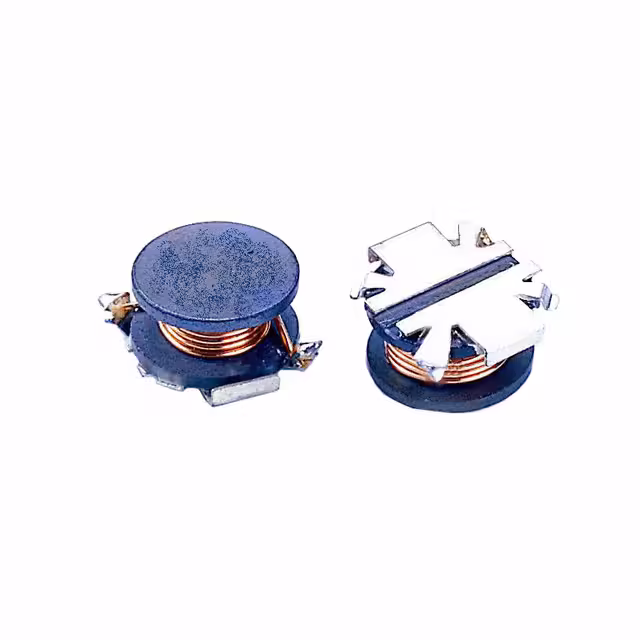

SCH114-180FIXED IND 18UH 2.55A 85 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 2.55 A | 3.4A | Unshielded | 85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-181FIXED IND 180UH 900MA 589MOHM SM Signal Transformer |
0 |
|
规格书 |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 µH | ±10% | 900 mA | 1A | Unshielded | 589mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-220FIXED IND 22UH 2.37A 100MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.37 A | 3A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-221FIXED IND 220UH 800MA 747MOHM SM Signal Transformer |
0 |
|
规格书 |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±10% | 800 mA | 900mA | Unshielded | 747mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-270FIXED IND 27UH 2.18A 114MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 27 µH | ±20% | 2.18 A | 2.7A | Unshielded | 114mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-271FIXED IND 270UH 680MA 927MOHM SM Signal Transformer |
0 |
|
规格书 |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 270 µH | ±10% | 680 mA | 720mA | Unshielded | 927mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-2R5FIXED IND 2.5UH 5.1A 30 MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.5 µH | ±30% | 5.1 A | 6.5A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-330FIXED IND 33UH 2.05A 122MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 2.05 A | 2.5A | Unshielded | 122mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-331FIXED IND 330UH 560MA 1.22OHM SM Signal Transformer |
0 |
|
规格书 |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±10% | 560 mA | 700mA | Unshielded | 1.22Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
|
|
SCH114-390FIXED IND 39UH 1.95A 139MOHM SMD Signal Transformer |
0 |
|
规格书 |
SCH114 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 39 µH | ±20% | 1.95 A | 2.3A | Unshielded | 139mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.193" (4.90mm) |
