固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AOTA-B252010S1R5MTFIXED IND 1.5UH 3.6A 42MOHM SMD Abracon LLC |
1,805 |
|
规格书 |
AOTA-B252010S | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 3.6 A | 3.7A | Shielded | 42mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
AOTA-B252010SR47MTFIXED IND 0.47UH 5.7A 20MOHM SMD Abracon LLC |
1,246 |
|
规格书 |
AOTA-B252010S | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 5.7 A | 6.5A | Shielded | 20mOhm Max | - | 81MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

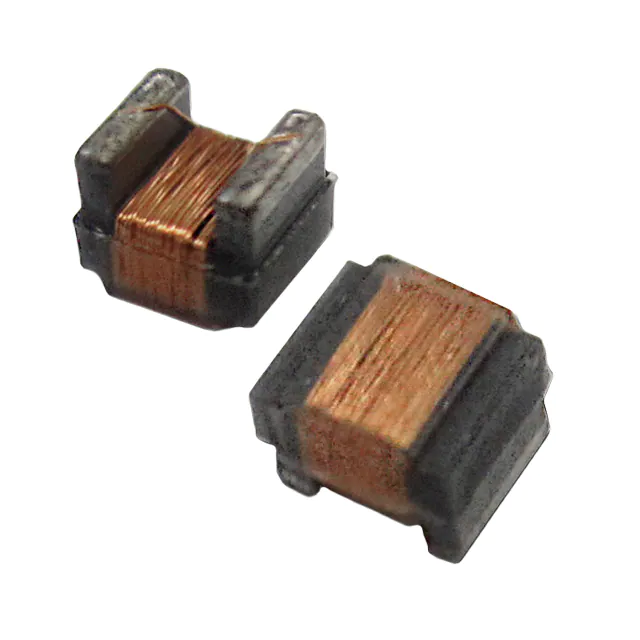

AISC-0805-R047J-TFIXED IND 47NH 500MA 310MOHM SMD Abracon LLC |
2,066 |
|
规格书 |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 500 mA | - | Unshielded | 310mOhm Max | 50 @ 500MHz | 1.6GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|

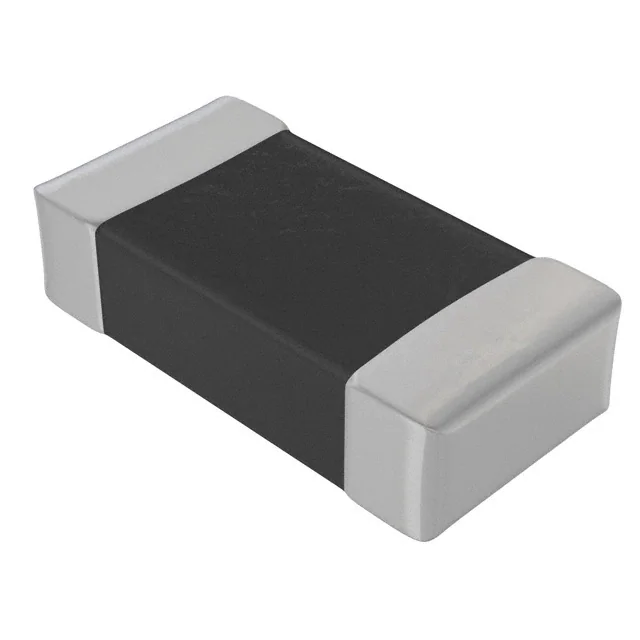

AIML-1206-2R2K-TFIXED IND 2.2UH 50MA 550MOHM SMD Abracon LLC |
32,911 |
|
规格书 |
AIML-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±10% | 50 mA | - | Shielded | 550mOhm Max | 50 @ 10MHz | 58MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
|
AIML-1206-100K-TFIXED IND 10UH 25MA 800 MOHM SMD Abracon LLC |
31,094 |
|
规格书 |
AIML-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±10% | 25 mA | - | Shielded | 800mOhm Max | 55 @ 2MHz | 28MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
|
AIML-1206-220K-TFIXED IND 22UH 5MA 900 MOHM SMD Abracon LLC |
21,698 |
|
规格书 |
AIML-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±10% | 5 mA | - | Shielded | 900mOhm Max | 40 @ 1MHz | 19MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
|
AIML-1206-6R8K-TFIXED IND 6.8UH 25MA 750MOHM SMD Abracon LLC |
20,187 |
|
规格书 |
AIML-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±10% | 25 mA | - | Shielded | 750mOhm Max | 55 @ 4MHz | 34MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
|
AIML-1206-1R0K-TFIXED IND 1UH 100MA 400 MOHM SMD Abracon LLC |
8,426 |
|
规格书 |
AIML-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±10% | 100 mA | - | Shielded | 400mOhm Max | 50 @ 10MHz | 90MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|

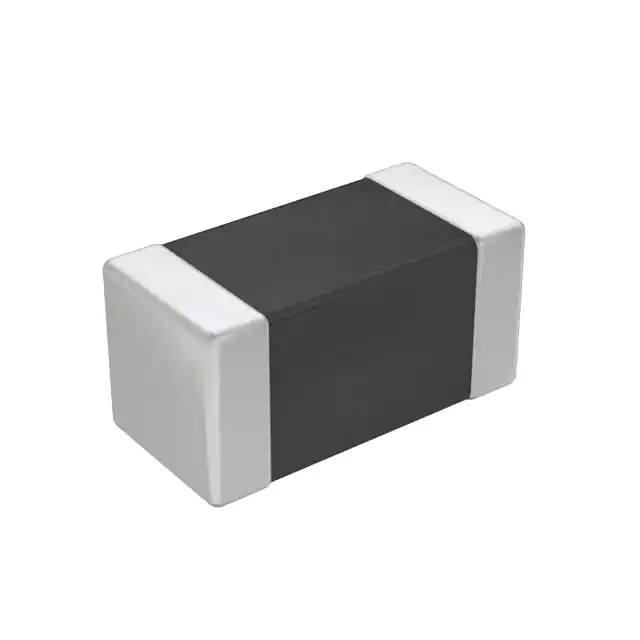

ASMPH-0603-1R0M-TFIXED IND 1UH 1A 200 MOHM SMD Abracon LLC |
30,914 |
|
规格书 |
ASMPH-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1 A | 800mA | Shielded | 200mOhm | - | 125MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

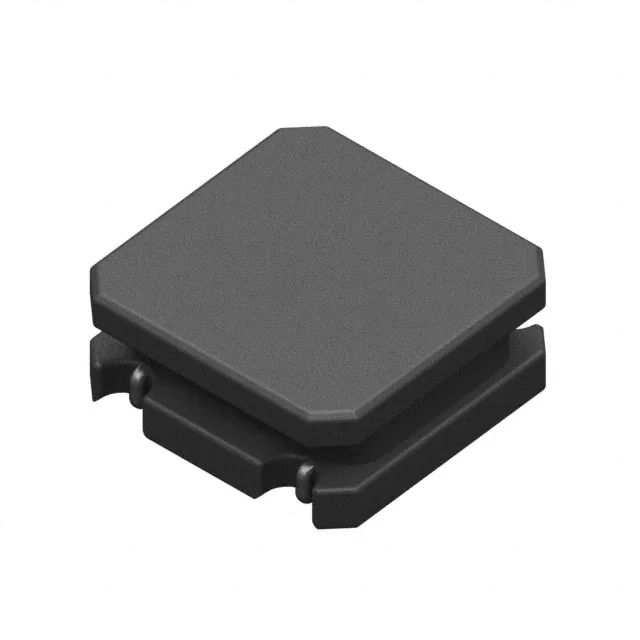

ASPI-0425-221M-T3FIXED IND 220UH 200MA 2.76OHM SM Abracon LLC |
21,014 |
|
规格书 |
ASPI-0425 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 µH | ±20% | 200 mA | 200mA | Shielded | 2.76Ohm Max | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
