固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

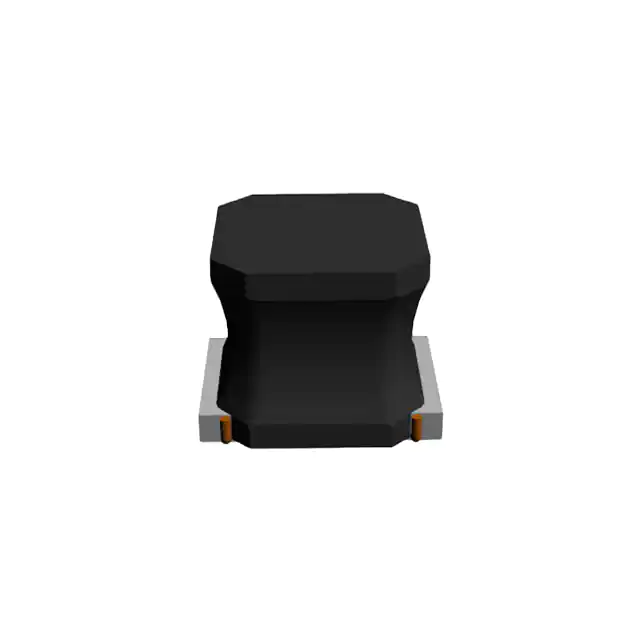

ASPIAIG-S8050-470M-TFIXED IND 47UH 1.7A 173 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPIAIG-S8050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 47 µH | ±20% | 1.7 A | 2.4A | Shielded | 173mOhm | - | 6.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.205" (5.20mm) |
|
|
ASPIAIG-S8050-151M-TFIXED IND 150UH 1A 480 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPIAIG-S8050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 150 µH | ±20% | 1 A | 1.4A | Shielded | 480mOhm | - | 3.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.205" (5.20mm) |
|
|
ASPIAIG-S8050-331M-TFIXED IND 330UH 650MA 1.044 OHM Abracon LLC |
0 |
|
规格书 |
ASPIAIG-S8050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 330 µH | ±20% | 650 mA | 900mA | Shielded | 1.044Ohm | - | 2.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.205" (5.20mm) |
|

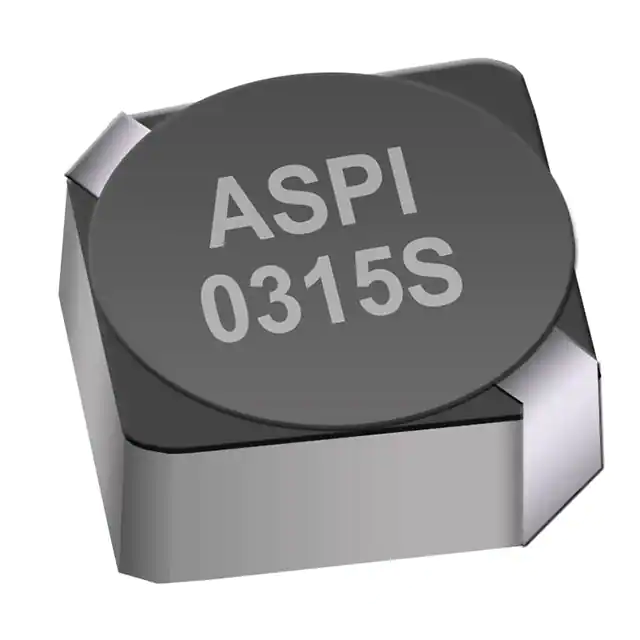

ASPI-0315S-3R3M-TFIXED IND 3.3UH 1.1A 85 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.1 A | - | Shielded | 85mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
|
|
ASPI-0315S-3R9M-TFIXED IND 3.9UH 750MA 81MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 750 mA | - | Shielded | 81mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
|
|
ASPI-0315S-4R7M-TFIXED IND 4.7UH 900MA 105MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 900 mA | - | Shielded | 105mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
|
|
ASPI-0315S-5R6M-TFIXED IND 5.6UH 620MA 102MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 620 mA | - | Shielded | 102mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
|
|
ASPI-0315S-6R8M-TFIXED IND 6.8UH 730MA 170MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 730 mA | - | Shielded | 170mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
|
|
ASPI-0315S-8R2M-TFIXED IND 8.2UH 510MA 140MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 510 mA | - | Shielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
|
|
ASPI-0315S-100M-TFIXED IND 10UH 550MA 210MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0315S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 550 mA | - | Shielded | 210mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.146" W (3.70mm x 3.70mm) | 0.071" (1.80mm) |
