固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

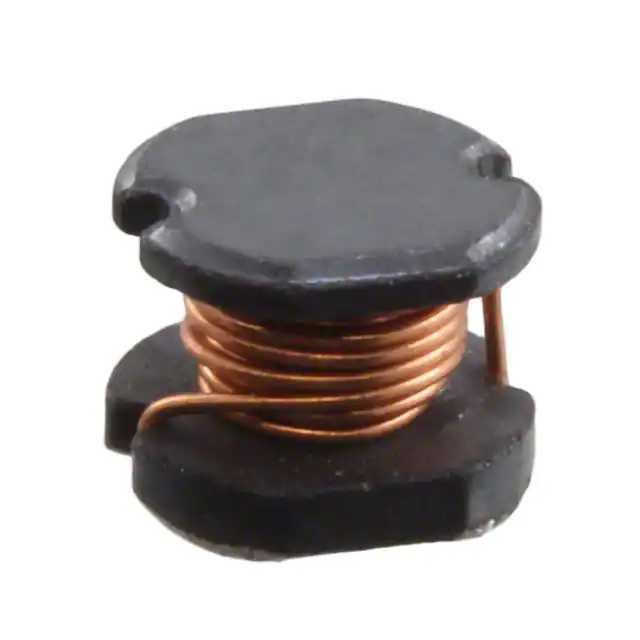

ASPI-0504-100M-TFIXED IND 10UH 1.44A 100MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0504 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.44 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
ASPI-0504-150K-TFIXED IND 15UH 1.3A 140 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0504 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.3 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
ASPI-0504-220K-TFIXED IND 22UH 1.11A 180MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0504 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.11 A | - | Unshielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
ASPI-0504-221K-TFIXED IND 220UH 350MA 1.57OHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0504 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 350 mA | - | Unshielded | 1.57Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
ASPI-0504-330K-TFIXED IND 33UH 880MA 230MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0504 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 880 mA | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
ASPI-0504-820K-TFIXED IND 82UH 580MA 600MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0504 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 580 mA | - | Unshielded | 600mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
|
ASPI-0504-470M-TFIXED IND 47UH 720MA 370MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0504 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.177" (4.50mm) |
|
AISC-0603F-150J-TFIXED IND 15UH 90MA 9.5 OHM SMD Abracon LLC |
0 |
|
规格书 |
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 90 mA | - | Unshielded | 9.5Ohm Max | - | 20MHz | - | -40°C ~ 85°C | 2.5 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
ASPI-0704S-2R2M-TFIXED IND 2.2UH 5A 28 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0704S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 5 A | - | Shielded | 28mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
AMSLA-1380-R44M-TIND 0.44UH 35A 0.35M Abracon LLC |
0 |
|
规格书 |
AMSLA-1380 | Nonstandard | Tape & Reel (TR) | Active | Molded | Manganese Zinc Ferrite (MnZn) | 440 nH | ±20% | 50 A | 35A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.315" (8.00mm) |
