固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMPLA7050Q-150MTIND 15UH 3.5A 92MOHM Abracon LLC |
0 |
|
规格书 |
AMPLA7050Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 15 µH | ±20% | 3.5 A | 6A | Shielded | 92mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
AMPLA7050Q-560MTIND 56UH 1.6A 396MOHM Abracon LLC |
0 |
|
规格书 |
AMPLA7050Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 56 µH | ±20% | 1.6 A | 2.1A | Shielded | 396mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
AMPLA7050Q-680MTIND 68UH 1.2A 445MOHM Abracon LLC |
0 |
|
规格书 |
AMPLA7050Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 68 µH | ±20% | 1.2 A | 2A | Shielded | 445mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
AMPLA7050Q-R33MTIND 0.33UH 25A 3MOHM Abracon LLC |
0 |
|
规格书 |
AMPLA7050Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 330 nH | ±20% | 25 A | 32A | Shielded | 3mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
AMPLA7050Q-470MTIND 47UH 1.9A 330MOHM Abracon LLC |
0 |
|
规格书 |
AMPLA7050Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 47 µH | ±20% | 1.9 A | 2.7A | Shielded | 330mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|

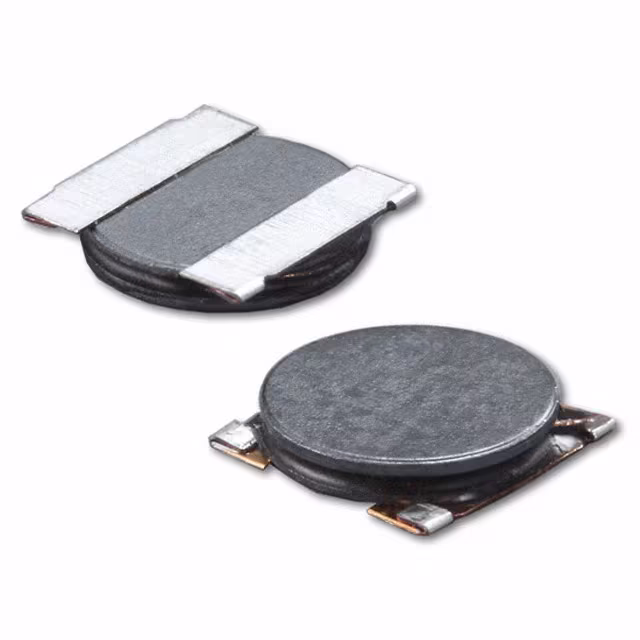

ASPI-0612FS-2R2M-TFIXED IND 2.2UH 1.8A 78 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0612FS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.8 A | 2.4A | Shielded | 78mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0612FS-4R7M-TFIXED IND 4.7UH 1.55A 163MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0612FS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.55 A | 1.6A | Shielded | 163mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0612FS-6R8M-TFIXED IND 6.8UH 1.35A 215MOHM SM Abracon LLC |
0 |
|
规格书 |
ASPI-0612FS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.35 A | 1.3A | Shielded | 215mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0612FS-100M-TFIXED IND 10UH 1.2A 260 MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0612FS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 1A | Shielded | 260mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|
|
ASPI-0612FS-220M-TFIXED IND 22UH 650MA 930MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-0612FS | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 650 mA | 760mA | Shielded | 930mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
