固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

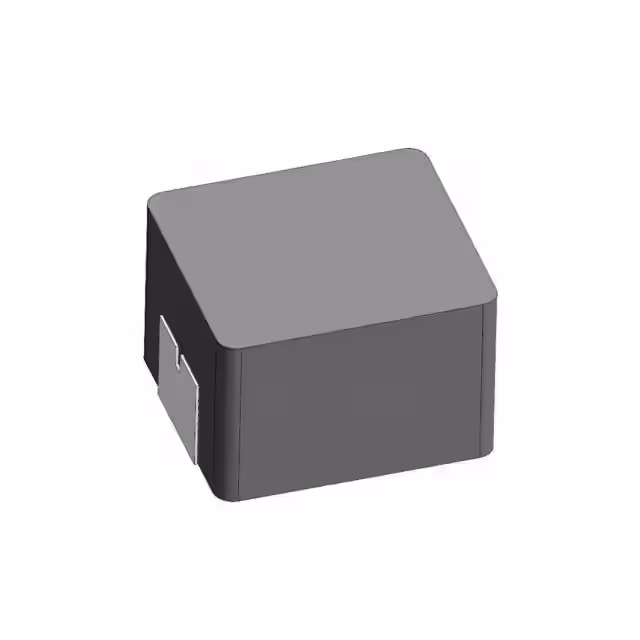

AMPLA7050Q-220MTFIXED IND 22UH 2.5A 170 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLA7050Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 22 µH | ±20% | 2.5 A | 5.5A | Shielded | 170mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
AMPLA7050Q-5R6MTFIXED IND 5.6UH 6A 49 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLA7050Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 5.6 µH | ±20% | 6 A | 9A | Shielded | 49mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
AMPLA7050Q-8R2MTFIXED IND 8.2UH 5A 63 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLA7050Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 8.2 µH | ±20% | 5 A | 8.5A | Shielded | 63mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
AMPLH7025S-1R5M-TFIXED IND 1.5UH 11A 10.1MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLH7025S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1.5 µH | ±20% | 13 A | 15A | Shielded | 10.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.094" (2.40mm) |
|
|
AMPLH7025S-8R2M-TFIXED IND 8.2UH 5A 53MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLH7025S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 8.2 µH | ±20% | 5.5 A | 6A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.094" (2.40mm) |
|
|
AMPLH7025S-R20M-TFIXED IND 0.2UH 21A 1.9MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLH7025S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 200 nH | ±20% | 25 A | 41A | Shielded | 1.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.094" (2.40mm) |
|
|
AMPLH7025S-5R6M-TFIXED IND 5.6UH 5.5A 40.2MOHM SM Abracon LLC |
0 |
|
规格书 |
AMPLH7025S | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 5.6 µH | ±20% | 6.5 A | 7.5A | Shielded | 40.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Low DCR, Soft Saturation | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.094" (2.40mm) |
|
AIUR-06-5R6KFIXED IND 5.6UH 5.9A 21 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 5.9 A | 11A | Unshielded | 21mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
|
AIUR-06-6R8KFIXED IND 6.8UH 5.6A 23 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 5.6 A | 10A | Unshielded | 23mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
|
|
AIUR-06-8R2KFIXED IND 8.2UH 5.3A 26 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-06 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 5.3 A | 9.5A | Unshielded | 26mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.710" (18.03mm) |
