固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

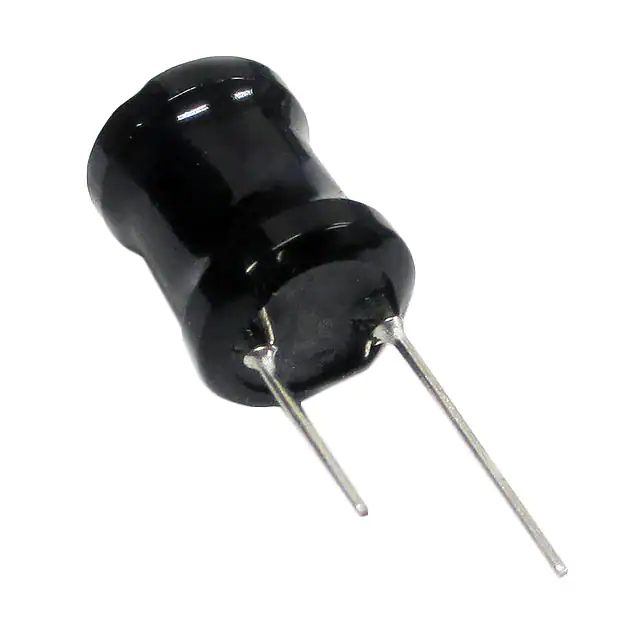

AIUR-16-180KFIXED IND 18UH 1A 62 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 1 A | 1.3A | Unshielded | 62mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-270KFIXED IND 27UH 1A 73 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 1 A | 1.1A | Unshielded | 73mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-330KFIXED IND 33UH 800MA 90 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 800 mA | 920mA | Unshielded | 90mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-560KFIXED IND 56UH 620MA 162 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 620 mA | 700mA | Unshielded | 162mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-121KFIXED IND 120UH 490MA 310MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 490 mA | 460mA | Unshielded | 310mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-151KFIXED IND 150UH 490MA 372MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 490 mA | 440mA | Unshielded | 372mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-181KFIXED IND 180UH 385MA 456MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 385 mA | 390mA | Unshielded | 456mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-561KFIXED IND 560UH 250MA 1.3 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 250 mA | 225mA | Unshielded | 1.3Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-681KFIXED IND 680UH 190MA 1.8 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 190 mA | 210mA | Unshielded | 1.8Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AIUR-16-821KFIXED IND 820UH 190MA 2.1 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 190 mA | 190mA | Unshielded | 2.1Ohm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
