固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

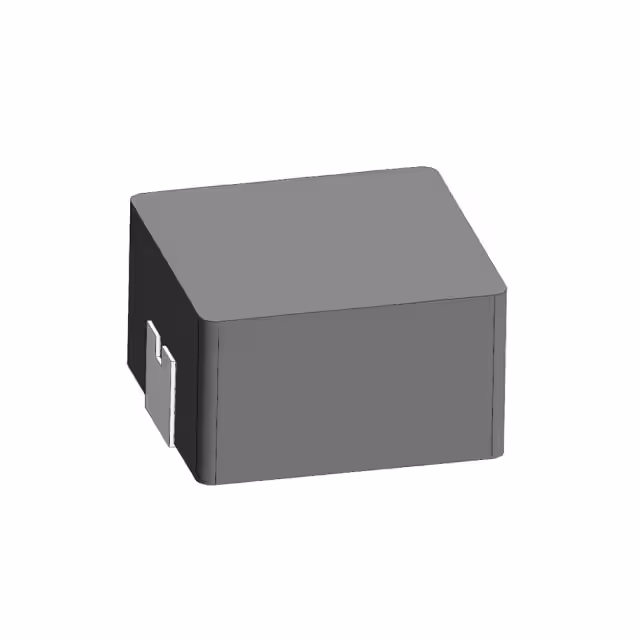

AMDLA4530Q-1R2MTFIXED IND 1.2UH 7.2A 16 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4530Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.2 µH | ±20% | 7.2 A | 7.6A | Shielded | 16mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.185" W (4.90mm x 4.70mm) | 0.118" (3.00mm) |
|
|
AMDLA4530Q-R12NTFIXED IND 120NH 30A 2.3 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4530Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 120 nH | ±30% | 30 A | 30A | Shielded | 2.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.185" W (4.90mm x 4.70mm) | 0.118" (3.00mm) |
|
|
AMDLA4530Q-R22MTFIXED IND 220NH 18A 3.2 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4530Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 18 A | 17A | Shielded | 3.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.185" W (4.90mm x 4.70mm) | 0.118" (3.00mm) |
|
|
AMDLA4530Q-R10NTFIXED IND 100NH 32A 2.1 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4530Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±30% | 32 A | 32A | Shielded | 2.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.185" W (4.90mm x 4.70mm) | 0.118" (3.00mm) |
|
|
AMDLA4530Q-1R5MTFIXED IND 1.5UH 6.6A 21 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4530Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 6.6 A | 6.3A | Shielded | 21mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.185" W (4.90mm x 4.70mm) | 0.118" (3.00mm) |
|
|
AMDLA4530Q-R68MTFIXED IND 680NH 12A 8.4 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA4530Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 12 A | 9A | Shielded | 8.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.185" W (4.90mm x 4.70mm) | 0.118" (3.00mm) |
|
AIUR-16-680KFIXED IND 68UH 620MA 186 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-16 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 620 mA | 660mA | Unshielded | 186mOhm Max | - | - | - | -25°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.374" (9.50mm) |
|
|
AMDLA4530Q-R35MTFIXED IND 350NH 16.5A 5.1MOHM SM Abracon LLC |
0 |
|
规格书 |
AMDLA4530Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 350 nH | ±20% | 16.5 A | 15A | Shielded | 5.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.185" W (4.90mm x 4.70mm) | 0.118" (3.00mm) |
|
AMPLA7030Q-R30MTIND 0.3UH 21A 3.8MOHM Abracon LLC |
0 |
|
规格书 |
AMPLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 300 nH | ±20% | 21 A | 35A | Shielded | 3.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|

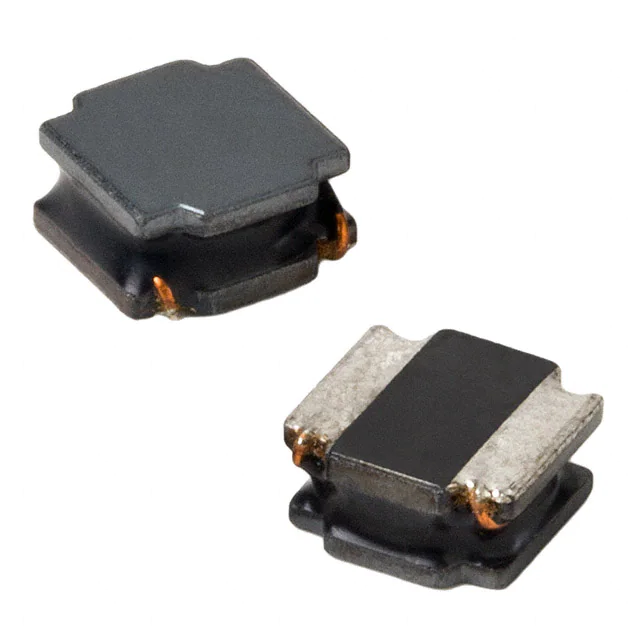

ASPI-3012S-R82N-TFIXED IND 820NH 2.47A 30MOHM SMD Abracon LLC |
0 |
|
规格书 |
ASPI-3012S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±30% | 2.47 A | 2.05A | Shielded | 30mOhm | - | 180MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" (1.40mm) |
