固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMDLA7030Q-2R7MTFIXED IND 2.7UH 7A 20 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.7 µH | ±20% | 7 A | 8.8A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|

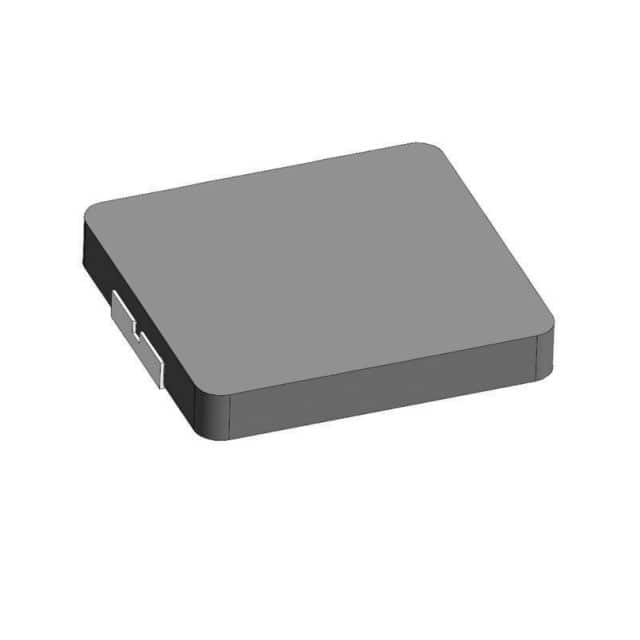

AMPLA7030Q-R22NTFIXED IND 220NH 23A 2.8 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 220 nH | ±30% | 23 A | 40A | Shielded | 2.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
AMPLA7030Q-R19NTFIXED IND 190NH 24A 2.5 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 190 nH | ±30% | 24 A | 41A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
AMDLA7030Q-R68MTFIXED IND 680NH 14.5A 5.3MOHM SM Abracon LLC |
0 |
|
规格书 |
AMDLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 680 nH | ±20% | 14.5 A | 15A | Shielded | 5.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
AMDLA7030Q-330MTFIXED IND 33UH 1.8A 258 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 33 µH | ±20% | 1.8 A | 2A | Shielded | 258mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
AMPLA7030Q-1R0MTFIXED IND 1UH 11A 10 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
AMDLA7030Q-R47MTFIXED IND 470NH 16A 4 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 16 A | 18A | Shielded | 4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
AMPLA7030Q-6R8MTFIXED IND 6.8UH 4.5A 60 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMPLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
AMPLA7030Q-R10NTFIXED IND 100NH 32.5A 1.7MOHM SM Abracon LLC |
0 |
|
规格书 |
AMPLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 100 nH | ±30% | 32.5 A | 60A | Shielded | 1.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
AMDLA7030Q-R82MTFIXED IND 820NH 13A 6 MOHM SMD Abracon LLC |
0 |
|
规格书 |
AMDLA7030Q | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 820 nH | ±20% | 13 A | 14A | Shielded | 6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
