固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

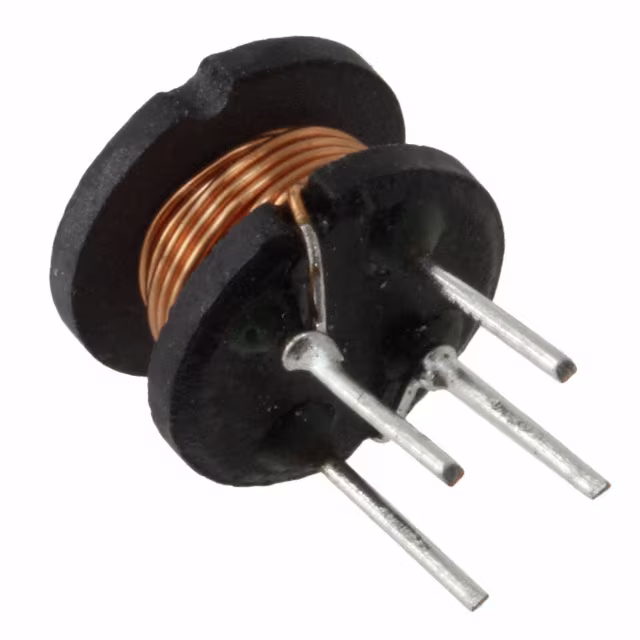

AIUR-09-470MFIXED IND 47UH 1.7A 180 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.7 A | - | Unshielded | 180mOhm Max | - | - | - | -55°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
AIUR-09-560MFIXED IND 56UH 1.5A 210 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 1.5 A | - | Unshielded | 210mOhm Max | - | - | - | -55°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
AIUR-09-680MFIXED IND 68UH 1.4A 250 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.4 A | - | Unshielded | 250mOhm Max | - | - | - | -55°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
AIUR-09-820MFIXED IND 82UH 1.3A 320 MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 1.3 A | - | Unshielded | 320mOhm Max | - | - | - | -55°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
AIUR-09-221KFIXED IND 220UH 810MA 700MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 810 mA | - | Unshielded | 700mOhm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
AIUR-09-271KFIXED IND 270UH 720MA 900MOHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 720 mA | - | Unshielded | 900mOhm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
AIUR-09-331KFIXED IND 330UH 620MA 1.2 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 620 mA | - | Unshielded | 1.2Ohm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
AIUR-09-391KFIXED IND 390UH 590MA 1.3 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 590 mA | - | Unshielded | 1.3Ohm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
AIUR-09-471KFIXED IND 470UH 570MA 1.5 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 570 mA | - | Unshielded | 1.5Ohm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
|
|
AIUR-09-561KFIXED IND 560UH 490MA 1.9 OHM TH Abracon LLC |
0 |
|
规格书 |
AIUR-09 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 490 mA | - | Unshielded | 1.9Ohm Max | - | - | - | -55°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.256" (6.50mm) |
